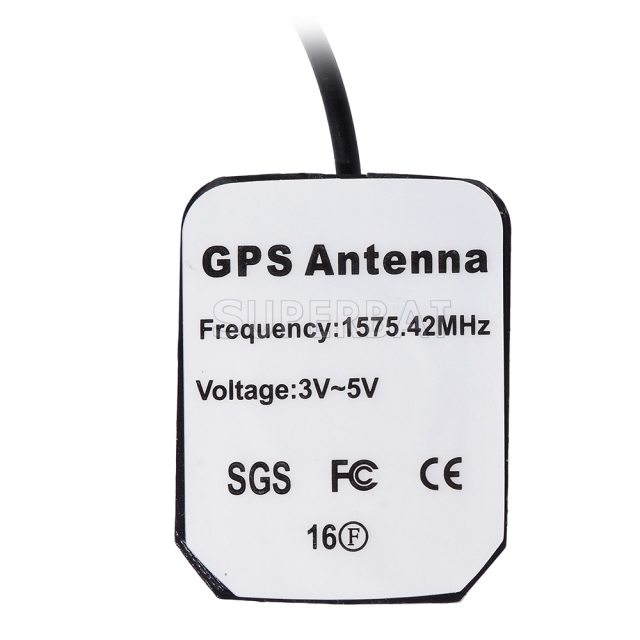

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width±5 MHz
Impedance 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
LNA/Filter
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB ￡íin f0+/-20MHZ ;
20dB ￡íin f0+/-50MHZ;
30dB ￡íin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 3V , 5V, 3V to 5V or other
DC Current 5mA /11mA/15mA Max
APLICATION:

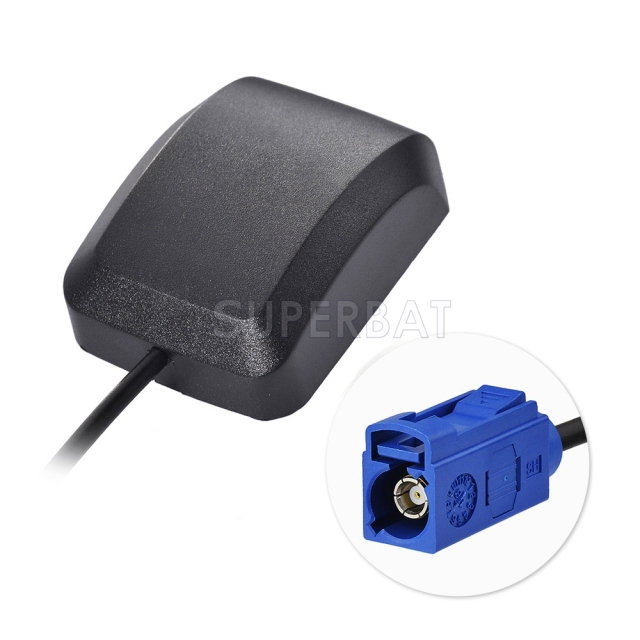

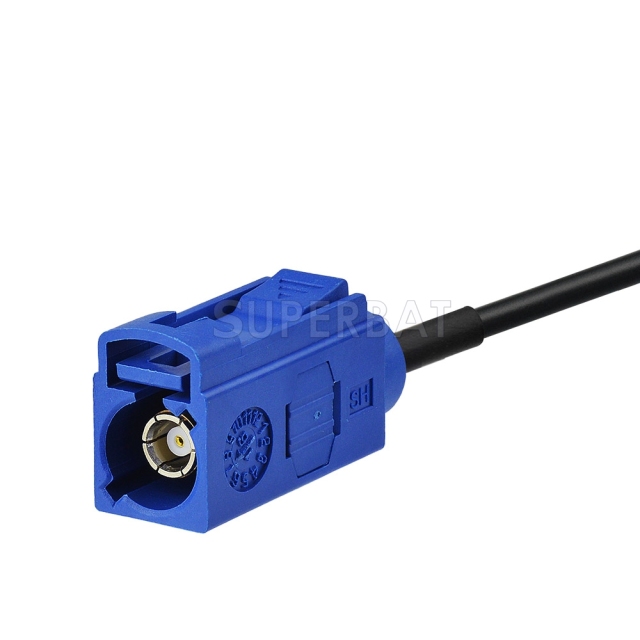

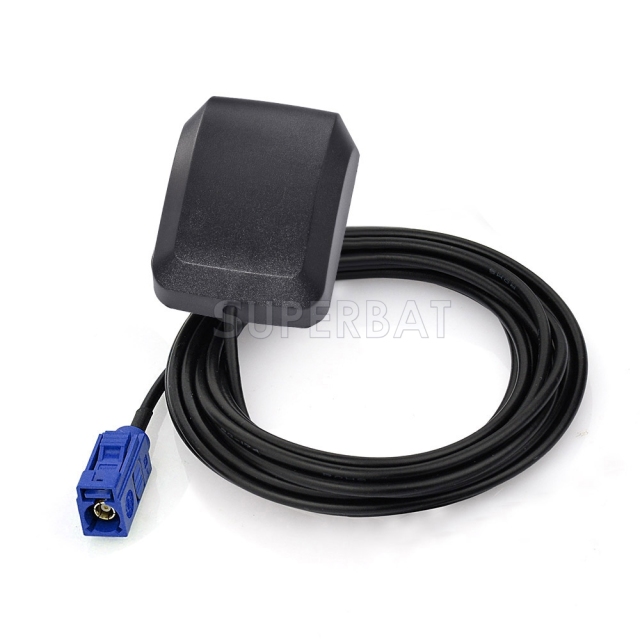

Fakra C Adapter GPS Antenna for VW: MFD2 RNS2, Golf 5, Golf Plus, Jetta, Passat, Touran, Touareg, T5, T5 Multivan RNS300 310, RNS315, RNS500, RNS510
Audi: RNS-E (16: 9), MMI DVD 2G, 3G, BNS low line
Skoda: RNS2, MFD2, Amundsen, Columbus; SEAT: RNS2, MFD2, Media System Low, Medium, High;
Mercedes-Benz: E-Class W211 Comand APS, CKL W209 APS 50 NTG 1, NTG 2, NTG 2.5, NTG 3, NTG 4
BMW Navigation Systems: CHAMP2, ENTRY, ENTRYNAV & ENAVEVO
