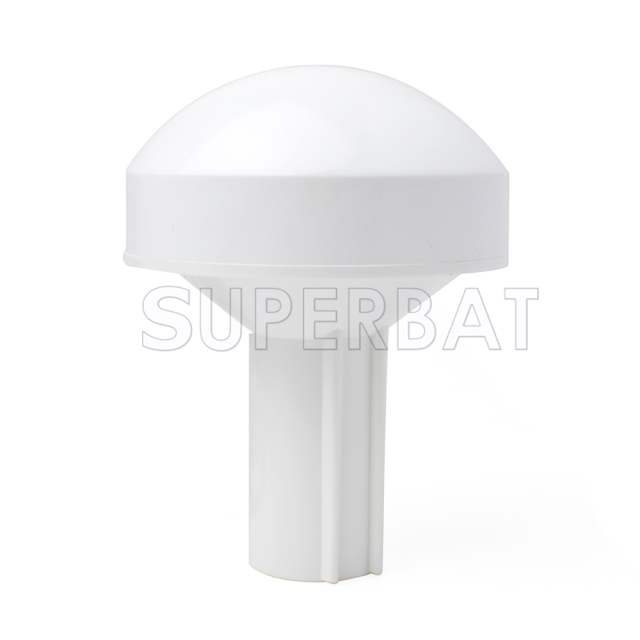

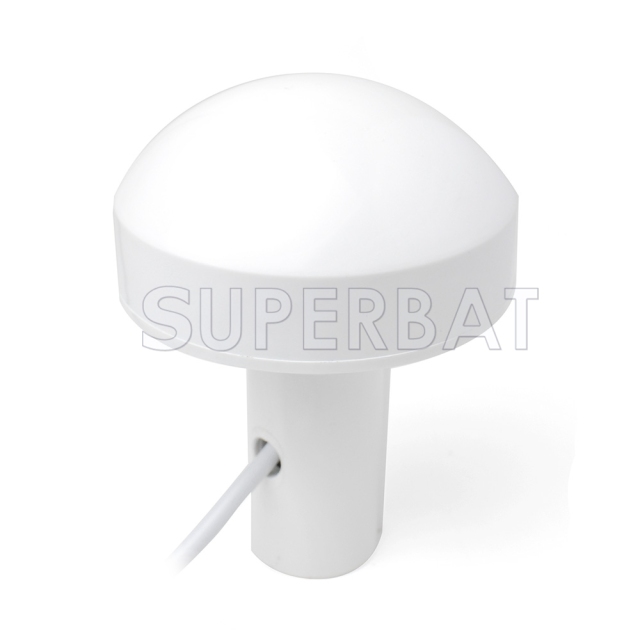

Dielectric antenna specification
Center frequency: 1575mhz+/-5 MHZ
V. S. W. R: <1.5
Band width: CF±5MHz
Impendence: 50 ohm
Gain: ≥28DB
Polarization: RHCP
Lna specification
Lna gain(without cable): 28±2dB
Filter Insertion Loss: ＜3dB
Noise figure: ＜1.3
Current Consumption: 18~35mA
Dc voltage: 3~5V DC
Mechanical specification
Weight: 335g

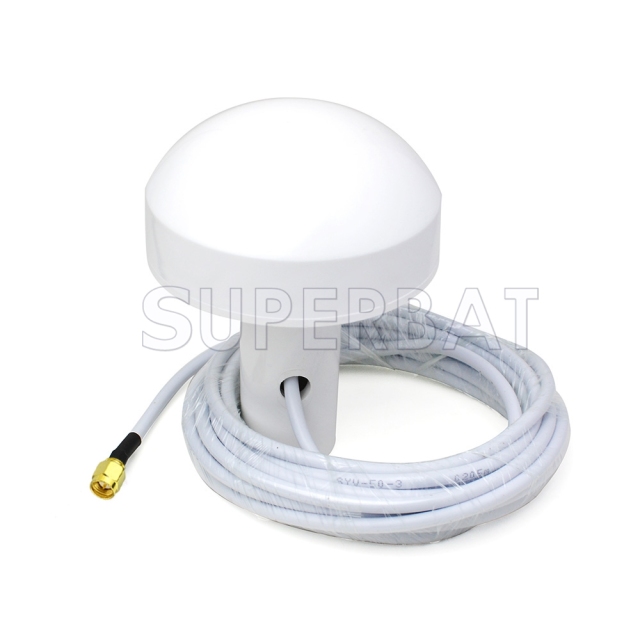

Cable: SYV-50-3
Cable Length: 5 meter ,(Optional 10meter ,contact us firstly)

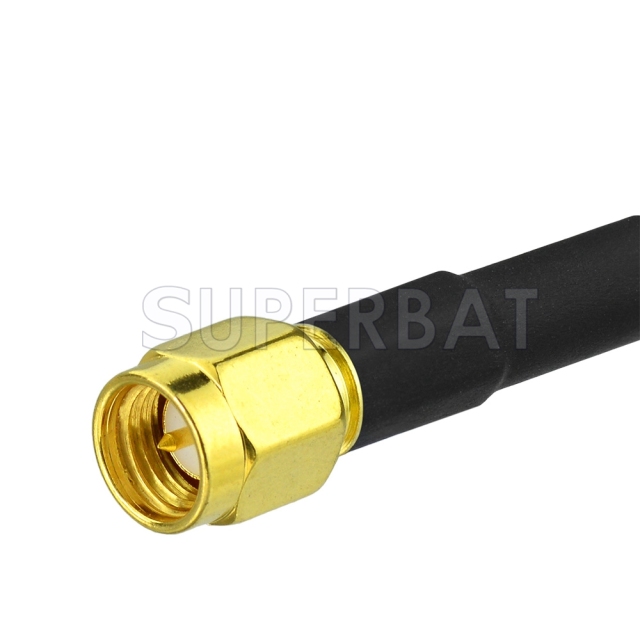

Connector: SMA male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

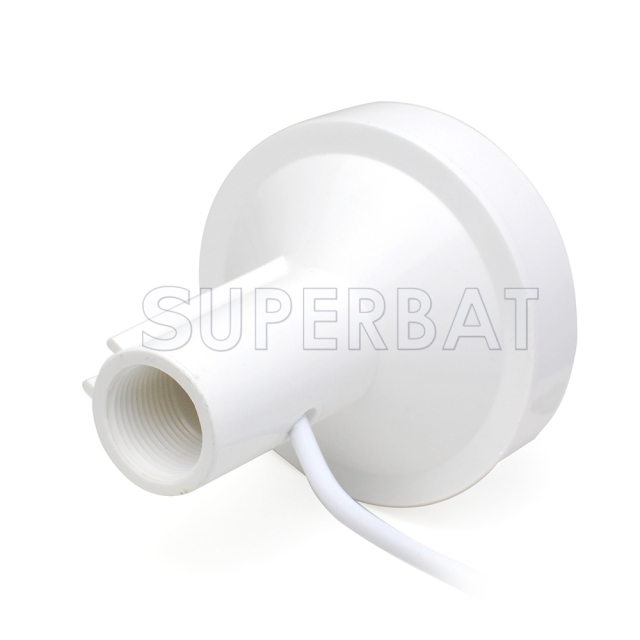

Mounting base: screw thread connection ( G3/4 )
Environmental specification
Working temp: -40~+60
Storage temp: -50~+85
Vibration sine sweep: 1g(0-p)10~50~10hz each axis
Humidity: 95%~100%rh
Weatherproof: 100%
