（i） Dieletric Antenna

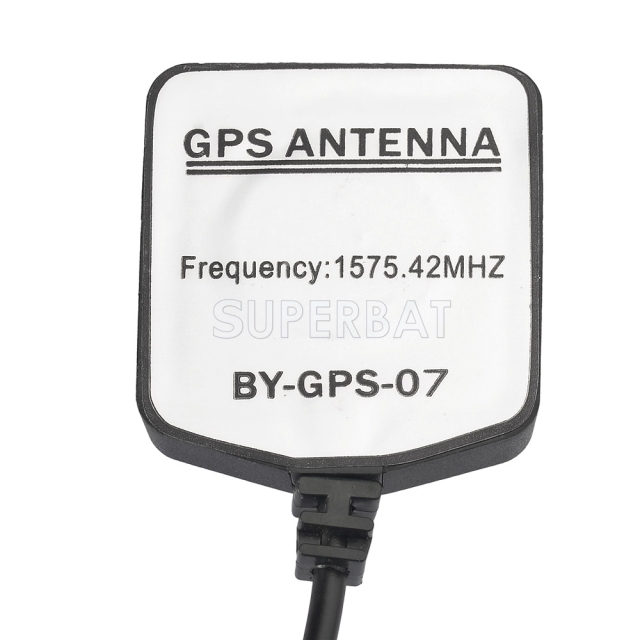

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
（iii）Mechanical
Weight ＜100gram
Size 38x34x11mm

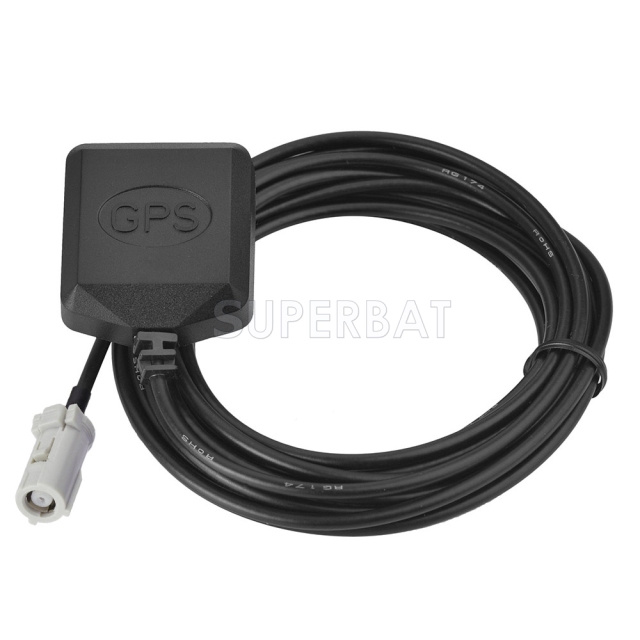

Cable :RG174 3 meter / contact us for other length

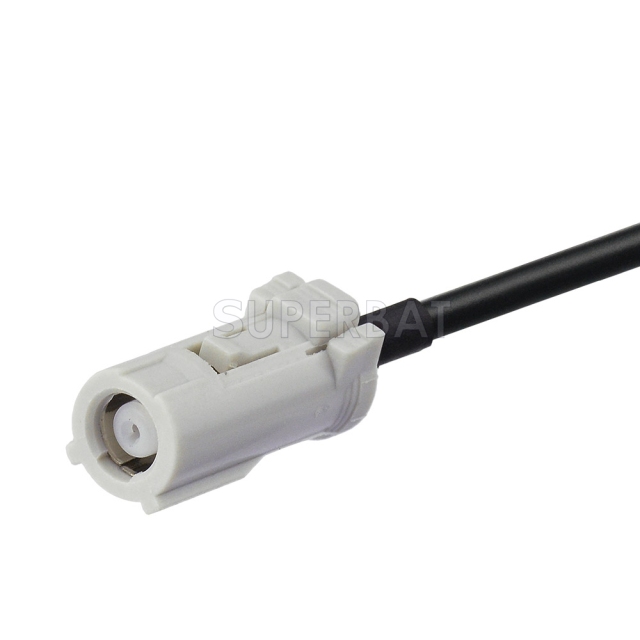

Connector :AVIC male straight default/ SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

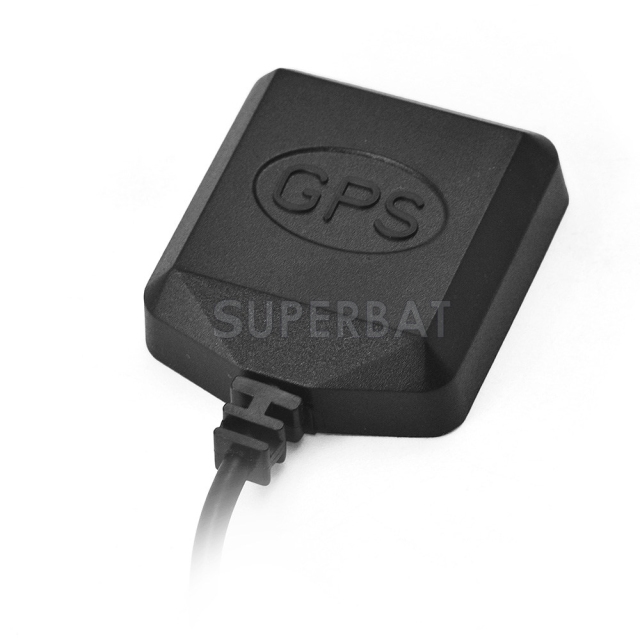

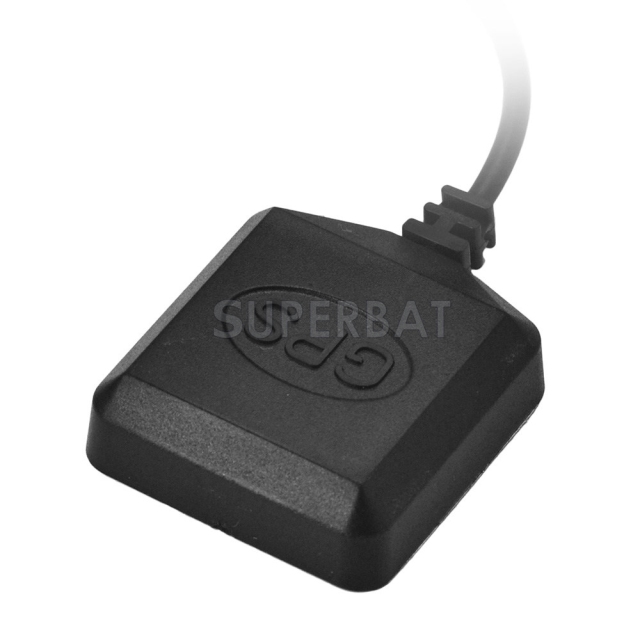

Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Mounting: Magnetic base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
Pioneer
AVIC-D1
AVIC-D2
AVIC-D3
AVIC-Z1
AVIC-Z2
AVIC-N1
AVIC-N2
AVIC-N3
AVIC-N4
AVIC-N5
AVIC-X1
AVIC-X2
AVIC-X3
AVIC-X1R
AVIC-X1BT
AVIC-HD1BT
AVIC-HD3BT
AVIC-991HVT
AVIC-810HVT
AVIC-710T
AVIC-610T
AVIC-800 DVD 50
AVIC-900
AVIC-90DVD
Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
