（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×175px ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

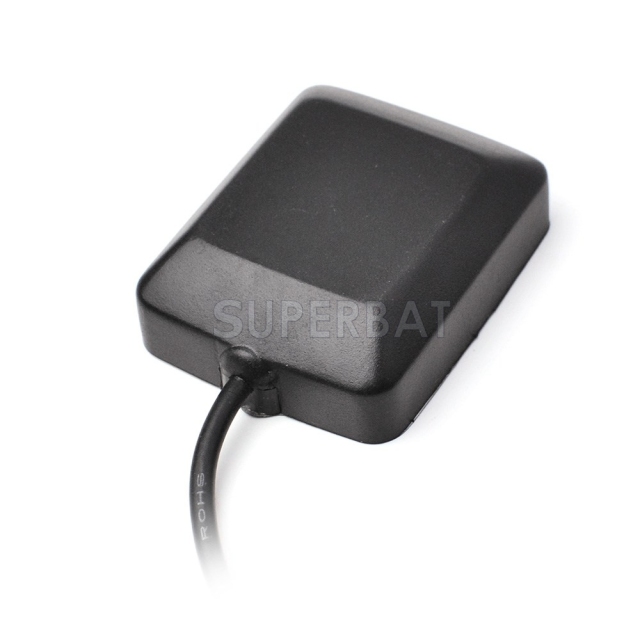

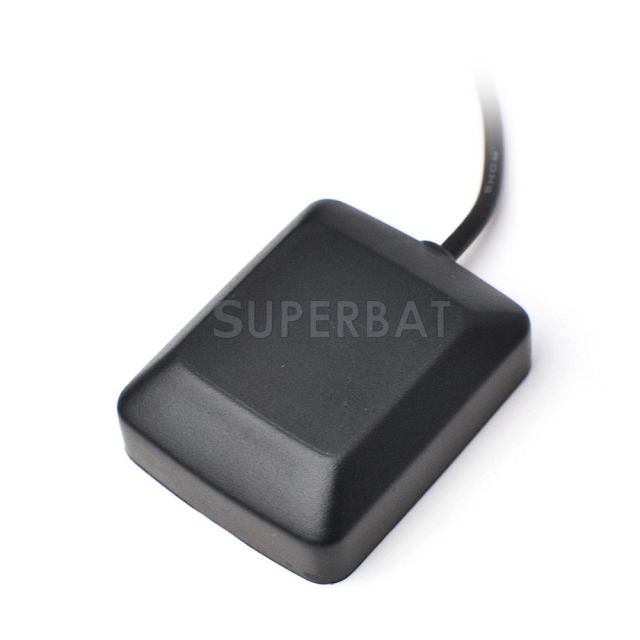

（iii）Mechanical
Weight ＜100gram
Size :48x39x16mm

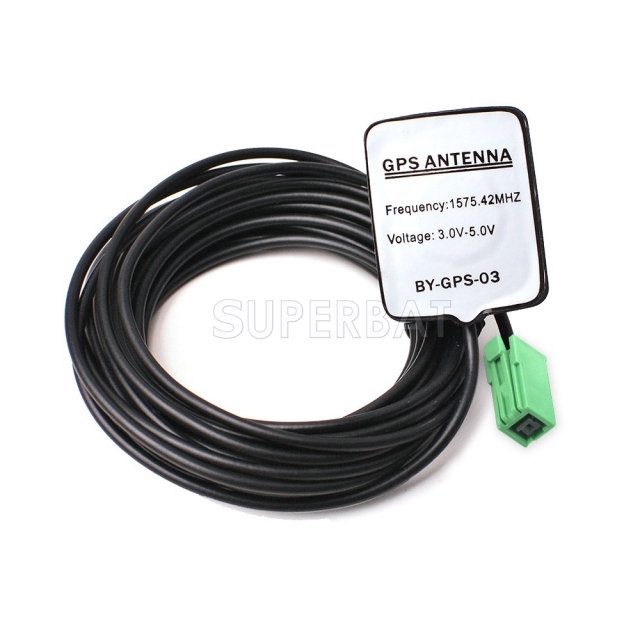

Cable :RG174 3 meter / Contact us for other length

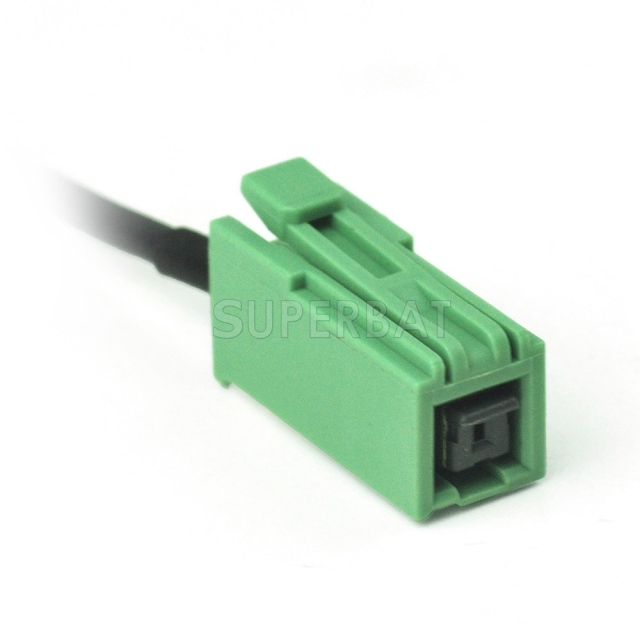

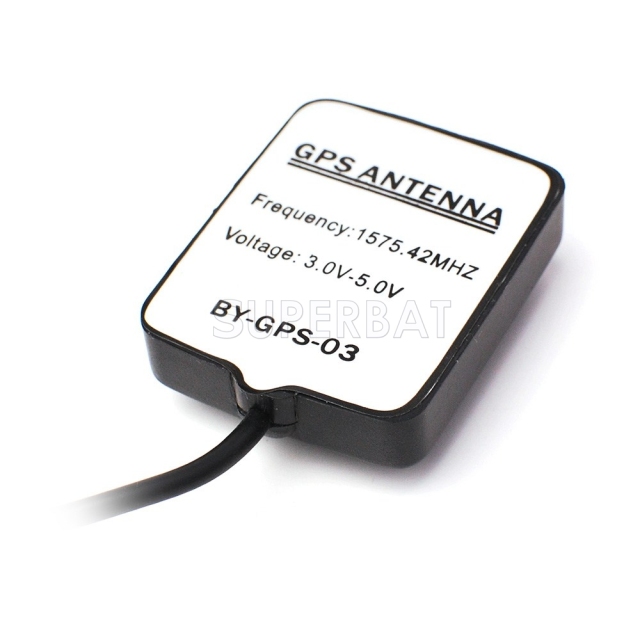

Connector : HRS GT5-1S jack default/SMA/SMB/SMC/AVIC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
GPS antenna with HRS GT5-1S compatibility:
Honda Navigation
Toyota Navigation
Nissan Navigation
Alpine
Alpine INE-W960HDMI
Alpine INE-W970HD
Alpine INE-W987HD
Alpine X308U
Alpine X009-GM
Alpine X009-TND
Alpine X009-FD2
Alpine X009-GM2
Alpine X209-WRA-OR
It is also compatible with Toyota Honda Nissan GPS Navigation.
Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
