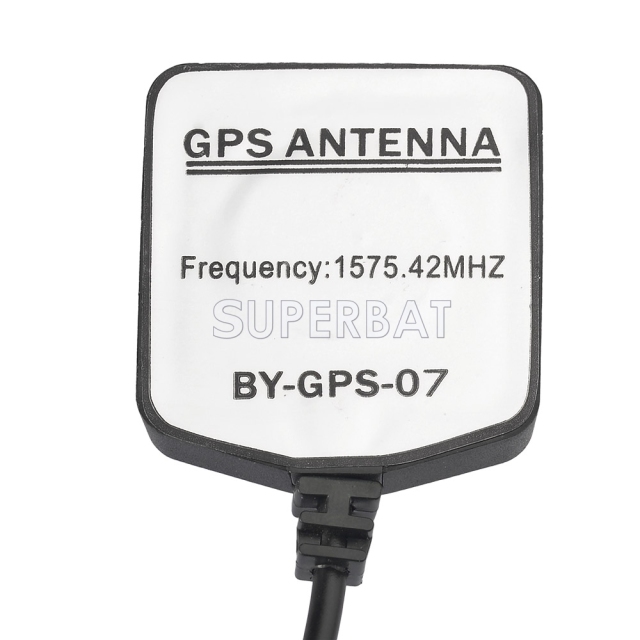

（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

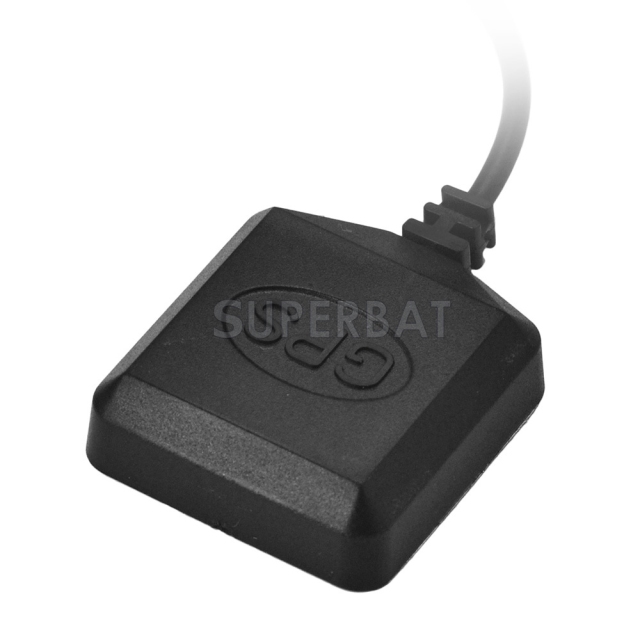

（iii）Mechanical
Weight ＜100gram
Size 38x34x11mm
Cable :RG174 3 meter / contact us for other length

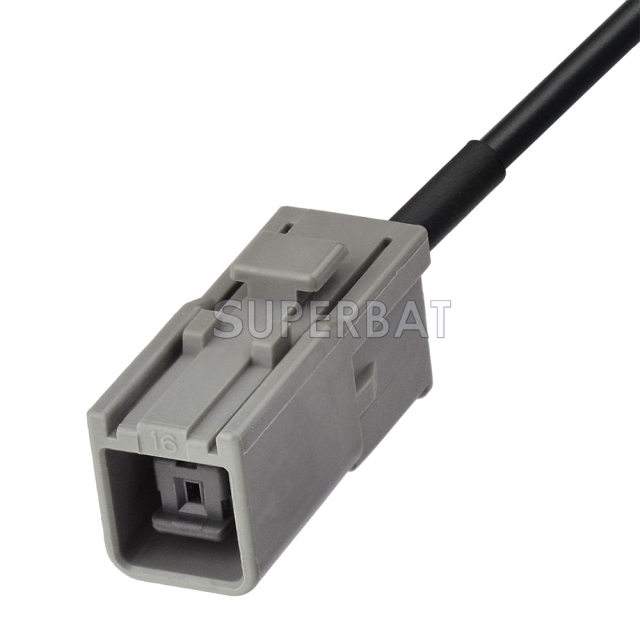

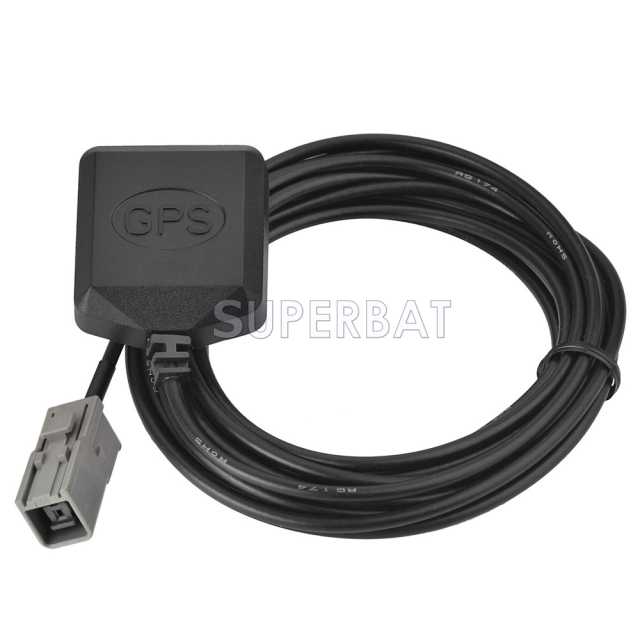

Connector :GT5-1S Female straight default/ SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

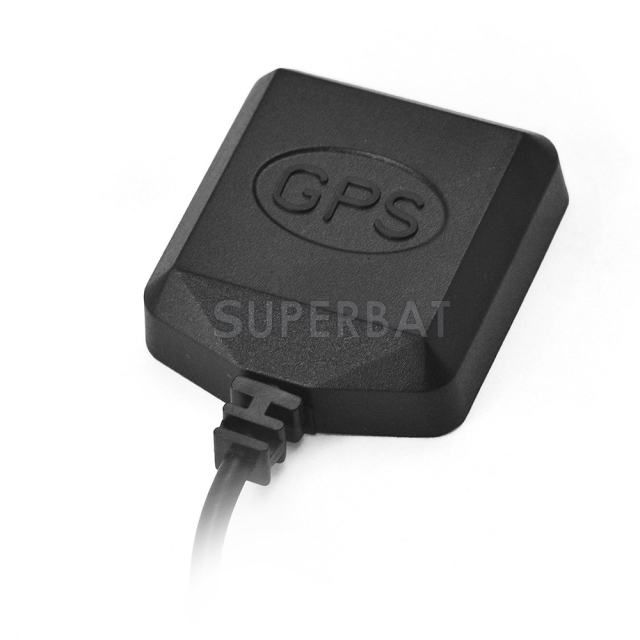

Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V)APPLICATIONS:
Honda Navigation
Toyota Navigation
Nissan Navigation
Alpine
Alpine INE-W960HDMI
Alpine INE-W970HD
Alpine INE-W987HD
Alpine X308U
Alpine X009-GM
Alpine X009-TND
Alpine X009-FD2
Alpine X009-GM2
Alpine X209-WRA-OR
