Superbat MHF4/IPEX4/IPX4 to U.FL Cable (10cm/3.9") MHF4 Female to IPX (IPEX/UFL) Male RF Pigtail Cable 1.13MM Low-Loss Extension Cable 2-Pack

MHF4 Female to IPX (IPEX/UFL) Male RF Pigtail Cable

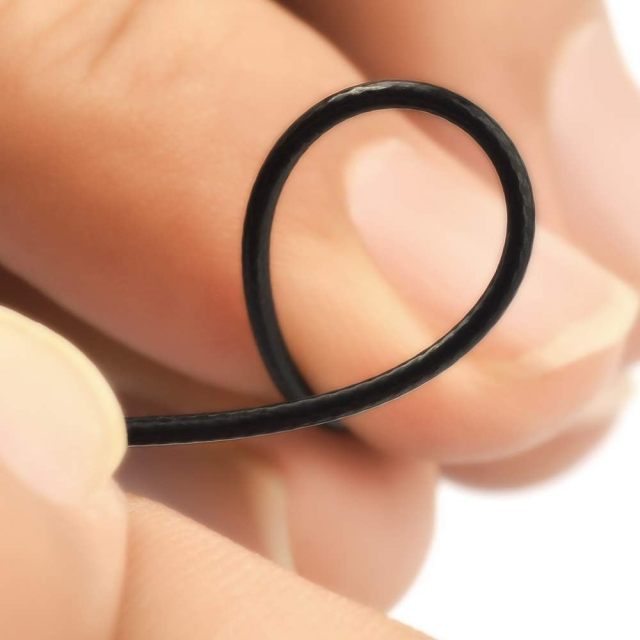

Cable type is 1.13mm Mini-coaxial cable (50 Ohm): This is a very thin and flexible cable, with a black jacket. When connecting MHF4 connector to a jack on a miniPCI card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible. The very thin cable is typically needed in tight spaces inside of enclosures, so that the MHF4 connector will snap down on the jack without popping off (more about this). Unfortunately we cannot make this antenna cable with a thicker, double-shielded low-loss cable, because the MHF4 connector is so small.

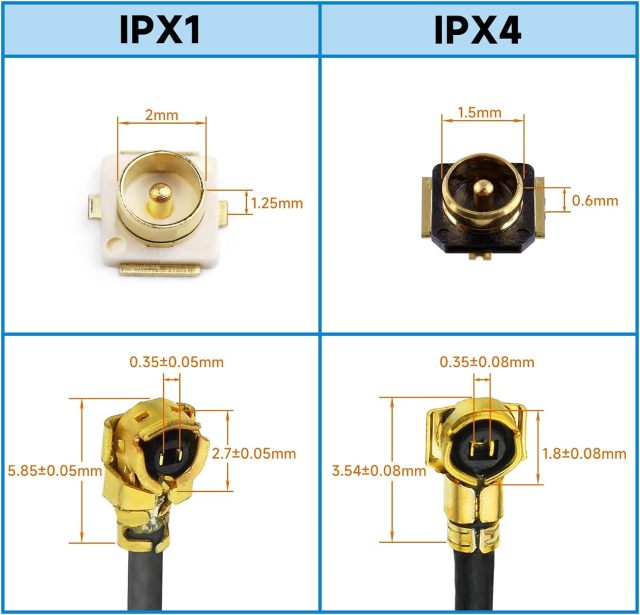

MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world. Only 1.2mm low profile, MHF4 IPEX/IPX connector provides good working performance in various application of Wireless LAN.
Application Technology: IEEE802.11 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless
The UFL to MHF4 series cable is impedance matched to 50 ohm cables.
Our MHF4 and U.FL connectors are precision machined and gold-plated for low loss.
U.FL male and female:
U.FL female right-angle type is the most common U.FL connector type found on U.FL cables.
Micro-connectors such as U.FL have gender that is counter to typical RF terminology for gender, in that "jack" is more typically synonymous with "female" A U.FL jack on a board (PCB) is the male U.FL, and the connector that mates with the jack is the female. U.FL female right-angle connector mates with U.FL antenna jacks of miniPCI wireless cards & RouterBoards such as: Intel PRO, MikroTik, Ubiquiti, BlueTooth boards, and ZigBee radios such as XBee: This pigtail enables connection of an external antenna to a mini-PCI wireless card with a female HiRose/U.FL connector U.FL-LP-66 connector.
ROHS compliant: The cable and connectors are all lead-free and ROHS compliant.


	MHF4/IPEX4/IPX4 to U.FL Cable, MHF4 Female to IPX (IPEX/UFL) Male Pigtail Cable	u.fl ipex extension cable, IPX Female to Male RF Pigtail	u.fl to sma cable, U.fl/IPEX Cable Mini PCI to SMA Female Coaxial Cable	MHF4 Mini PCI to SMA female Coaxial Cable Pigtail	U.FL IPEX to SMA Cable, SMA Female Flange to U.FL Female Extension Pigtail	ipex antenna 2.4G Wireless Mini PCI PCI-E WiFi Bluetooth Internal Antenna
	See Details	See Details	See Details	See Details	See Details	See Details
Customer Reviews	46	74	314	28	28	57
Cable Type	1.13MM	1.13MM	1.13MM	1.13MM	1.13MM	RG178
Applications	retrofit for laptop wireless chip, WiFi reception，Wireless aircard etc.	for broadcom-based card, AX200 wifi card, laptop wireless chip etc.	for External Antenna , Wireless LAN Devices, WiFi IP Security Camera, Bluetooth, WiFi USB Adapter, Mini PCI card etc.	for External Antenna , Wireless LAN Devices, WiFi IP Security Camera, Bluetooth, WiFi USB Adapter etc.	for External Antenna , Wireless LAN Devices, WiFi IP Security Camera, Bluetooth, WiFi USB Adapter, Mini PCI card etc.	for Bluetooth, Wireless Communication System, Wi-Fi, WiMAX, MIMO System, Zigbee network
