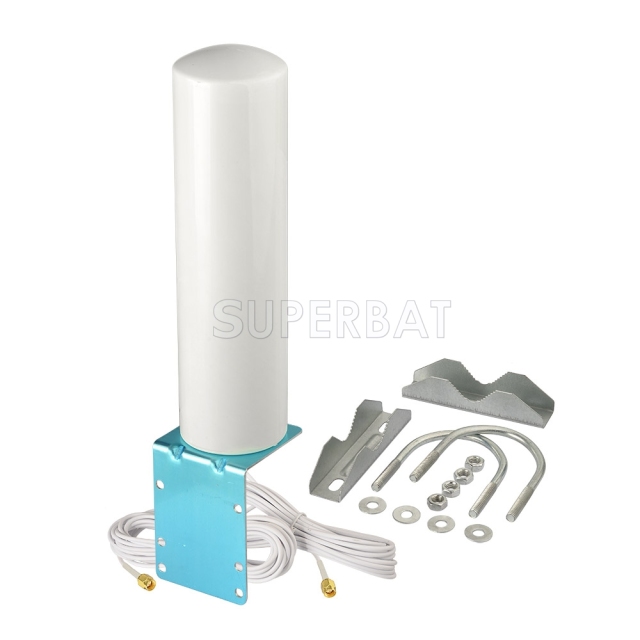

This is a 4G LTE Antenna designed for 4g router and signal repeater.It has the following characteristics:
1. Compatible with the 4G mobile broadband modem router, simple installation, no software required.
2. Fits 4G modems with male SMA
3. Compatible List: 3G 4G router modem
4. Usable indoor or outdoor to improve and maintain excellent signal quality.
5. Frequency range: 698-960 / 1710-2700 MHZ
6 VSWR: <2.5
7. Gain: 10-12dBi
8. Polarization Type: Vertical
9. Radiation: Omni
10. Maximum input power: 10 W
11. Input impedance: 50 ohms

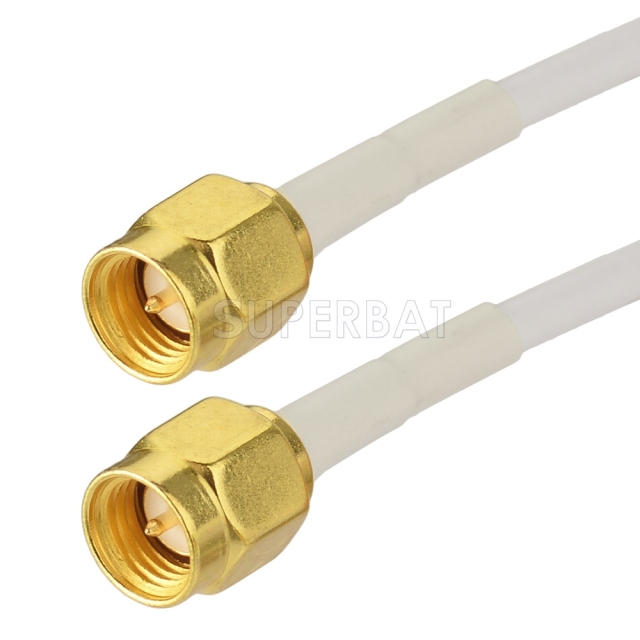

12. Type of connector: SMA
13. Cable Type: RG174
14. Cable Length: approx. 5m
15 Dimensions: Appox. 23 X 6.5X6.5 CM
16 Material: Metal + plastic
17. Color: white
18. Installation tips:

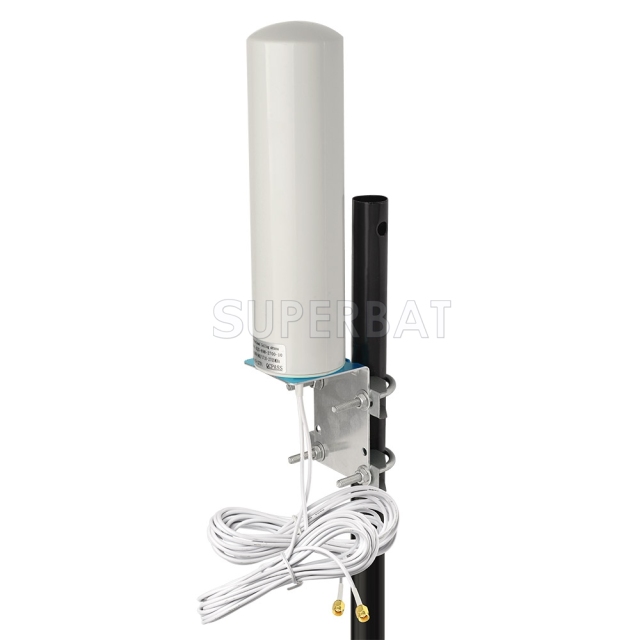

The antenna must be mounted vertically to maximize performance
The antenna must not be mounted against metal
This antenna is compatible with:ZTE MF28G,ZTE MF29T,ZTE MF29S2,ZTE MF28D
Huawei E5186,Huawei E5172,Huawei B890,Huawei B593u-12,Huawei B593S-22,Huawei B593U-91,Huawei B593U,Huawei E5172AS-22,Huawei E517S22
Vodafone B4000,Vodafone B3000,Vodafone B2000,Vodafone B1000
