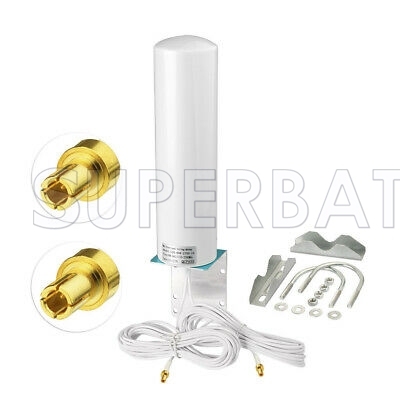

This is a MIMO 4G antenna with up to 10 dB of gain. It is designed to be used with your 4G router and Booster.
1. Compatible with the 4G mobile broadband modem router, simple installation, no software required.
2. Fits 4G modems with male SMA
3. Compatible List: 3G 4G router modem
4. Usable indoor or outdoor to improve and maintain excellent signal quality.
5. Frequency range: 698-960 / 1710-2700 MHZ
6 VSWR: <2.5
7. Gain: 10-12dBi
8. Polarization Type: Vertical
9. Radiation: Omni
10. Maximum input power: 10 W
11. Input impedance: 50 ohms
12. Type of connector: SMA
13. Cable Type: RG174
14. Cable Length: approx. 5m
15 Dimensions: Appox. 23 X 6.5X6.5 CM
16 Material: Metal + plastic
17. Color: white
18. Installation tips:
The antenna must be mounted vertically to maximize performance
The antenna must not be mounted against metal
This antenna is compatible with:ZTE MF821D,ZTE MF821,ZTE MF90,ZTE MF93E,ZTE MF91D,ZTE MF91,ZTE MF91T,ZTE MF93D,ZTE MF91S,ZTE MF827,ZTE MF825C,ZTE MF95,ZTE MF75,ZTE Flare
Vodafone R215,Vodafone R212,Vodafone K5150,Vodafone K5005,Vodafone K5006Z,Vodafone R226
