Superbat RG8X Coaxial Cable 50ft, Low Loss 50 Ohm RG8X Coax Cable
Product Description:

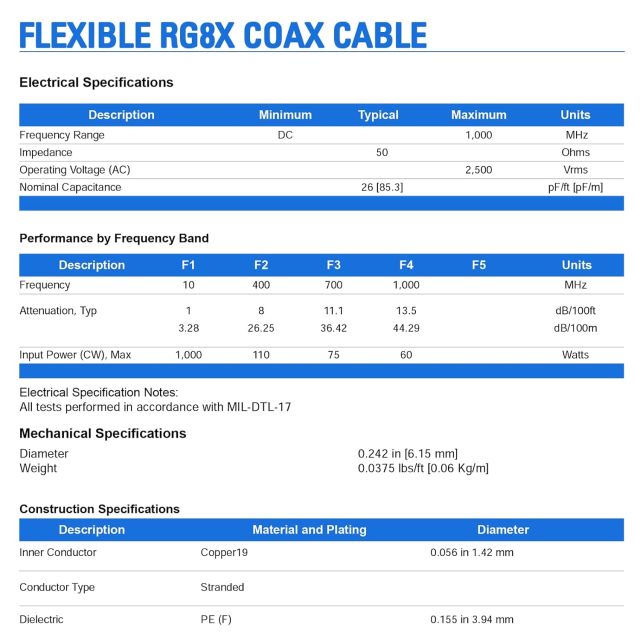

Cable Length: 50ft | Impedance：50 Ohm | SWR：<1.15

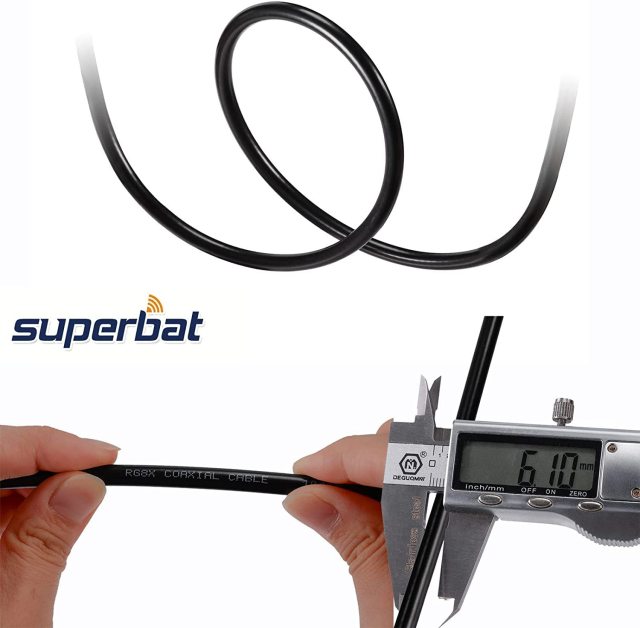

Dielectric Type：PE (F) | Jacket Material：PVC (NC) | Jacket Diameter：0.242 in | Power：Max < 60 Watts | Frequency Range: 0 - 1 GHz | Max Operating Temperature：80℃

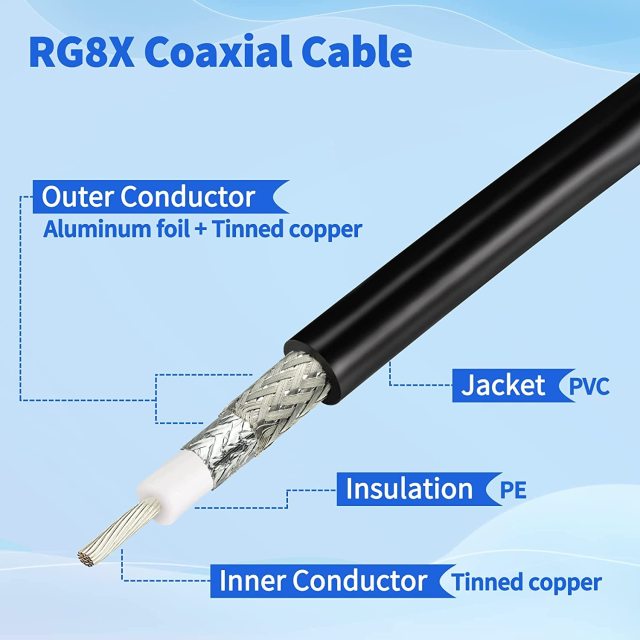

RG8X coaxial cable adopts flexible waterproof, strong anti-oxidation shielding PVC sheath, high-quality aluminum foil and silver-plated copper double-layer braided shielding layer to prevent a large amount of signal leakage or external electrical interference, and maximize the protection of signals during transmission.
Compatibility : This RG8x cable works with any 50 ohm RF system including CB ham radios, WiFi repeaters, cell phone signal boosters, monitors, antenna analyzers, switch meters, antenna tuners, and more. It works well with SMA/BNC/TNC/UHF (PL259)/TS9/N Type Connectors.
 |  |  |  |  | |
|---|---|---|---|---|---|
| ALSR195 RF Coaxial Cable Low Loss Cable | RG58 Coaxial Coax Cable | RG174 Coax Coaxial Cable Black 50 Ohm Mini Rg-174 Bare Wire | RG179 Coax Coaxial Cable 75ohm | Low Loss RG 316 Cable RF Coaxial Coax Cable for DIY | |
| | | | | | |
| Customer Reviews | 11 | 295 | 92 | 9 | 96 |
| Jacket: PVC | ✓ | ✓ | ✓ | FEP | FEP |
| Material: Inner conductor | Solid copper | Tinned copper | Bare Copper | Copper Clad Steel Wire | silver plated copper clad steel |
| Outer conductor: | Bonded Aluminum Foil+Tinned Copper Braid | Tinned Copper Braid | Tinned Copper Bried | Single layer silver plated copper wire braid | silver plated copper braid |
| Diameter(mm): Inner conductor | 0.94mm | 19*0.18 | 7*0.17 | 7*0.102 | 7*0.175 |
| Diameter(mm) Insulation | 2.79 | 2.95 | 1.52 | 1.6 | 1.52 |
| Diameter(mm) Outer conductor | 3.53mm | 3.50 | Nom.1.90 | Nom.2.04 | 1.95 |
| Diameter(mm) Jacket | 4.95 | 4.95 | 2.79 | 2.54 | 2.50 |
 |  |  |  |  | |
|---|---|---|---|---|---|
| PL259 UHF Male Solder Coaxial Connectors | PL259 UHF RF Coaxial Cable Low Loss Cable | N Male to SMA Male Low Loss RG8X Cable | PL259 to SO239 Low Loss RG8X RF Coax Cable | Low Loss SMA Extension Cable rg8x coax cable | |
| | | | | | |
| Customer Reviews | 292 | 3,618 | 212 | 112 | 7 |
| Type | PL259 Solder Coaxial Connectors | PL259 to PL259 RG8X Coax Cable | N Male to SMA Male RG8X Coax Cable | PL259 to SO239 RG8X Coax Cable | SMA male to SMA female bulkhead cable |
| Application | for RG8X LMR240 RF Coaxial Cable, CB radios, antenna switch, public address systems, audio, video, mobile radio, and test equipment,antennas, broadcast, low-frequency Applications, telecom, wireless LAN Devices and Digital Communication System. | for CB Antennas, Antenna Analyzer,dummy load, Radio Scanner, Antenna Tuner, Coax Switch, Ham Radio Transceiver,CB Radio, walkie-talkie, Handheld & Amateur Radio Equipment. | for 3G/4G/LTE/Ham/ADS-B/GPS/RF Radio Antenna, Router Modem, Surge Arrester, WiFi Router, GPS Receiver,tactacam reveal cell camera, Signal Booster. | for cb ham radio, HF amateur radio, marine boat VHF radio, swr meter, surge protector, Walkie Talkies and etc. | for 5G Modem Router Antenna 3G/4G/ADS-B/Ham/GPS/WiFi/RF Radio SDR Equipment |
