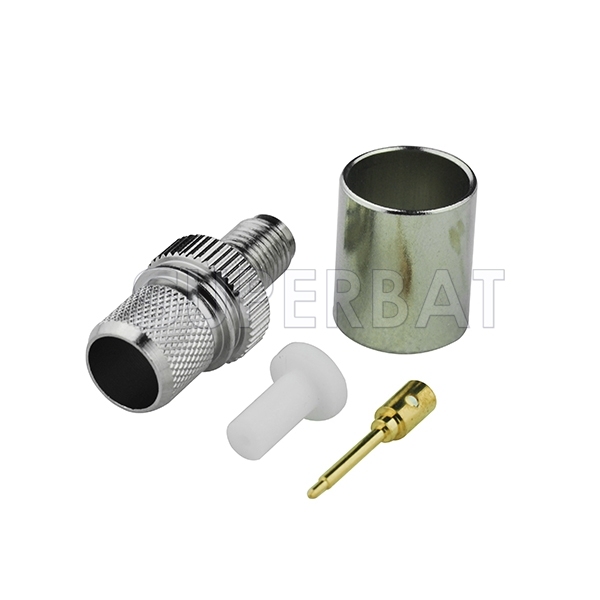

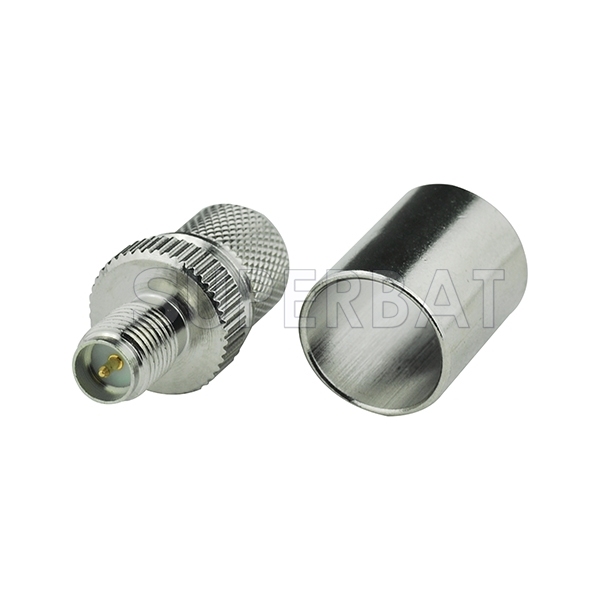

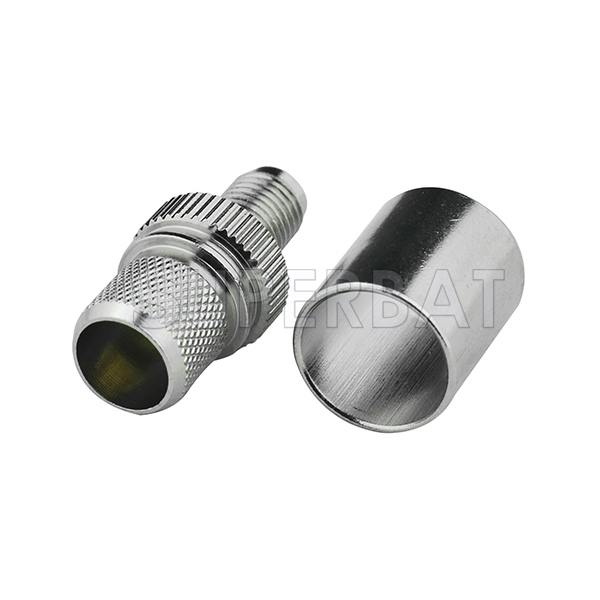

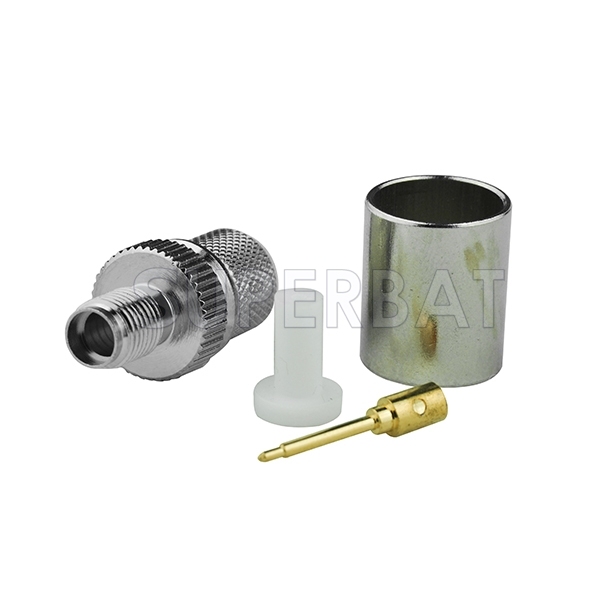

Description:
Product Series:SMA
Product Type:Cable mount
Application:Crimp
Body Plating:Nickel-plated
Body Termination:Crimp
Cable Type:RG214,RG213,RG8,LMR400
Connector Body Style:Straight
Connector Material: Brass
Contact Plating:Nickel
Contact Termination:Solder
Gender: Jack (male pin)
Impedance:50 Ohm
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.
For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/247, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
Features and Benefits
Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
Applications
Base stations
Antennas
Telecommunications
Instrumentation
PC/LAN
