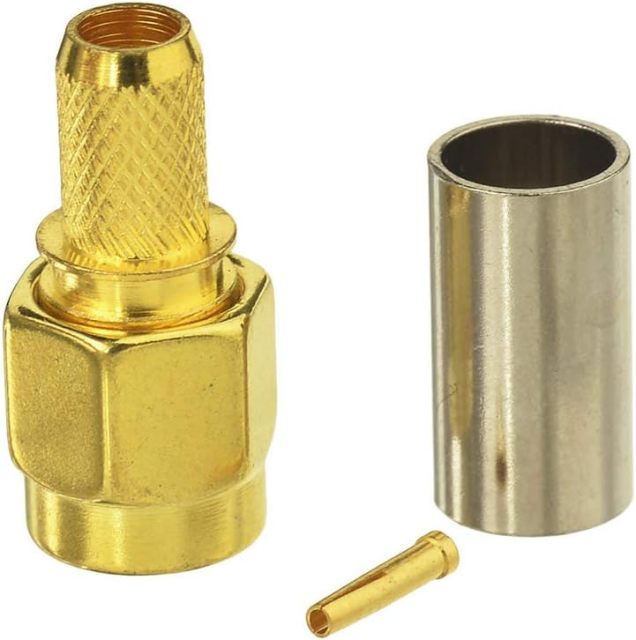

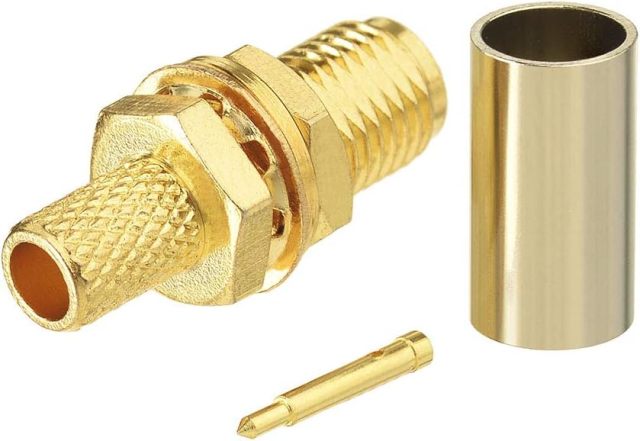

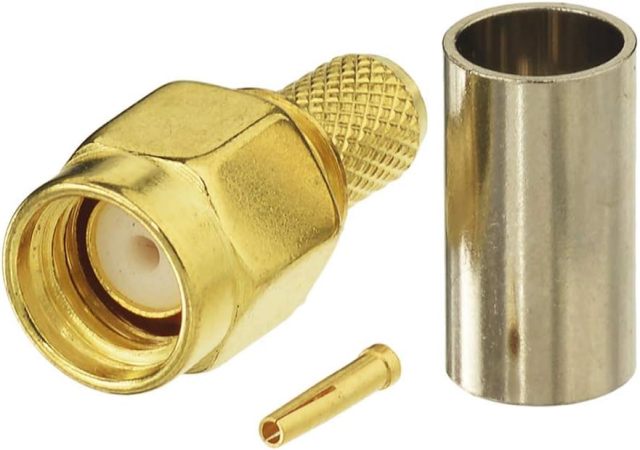

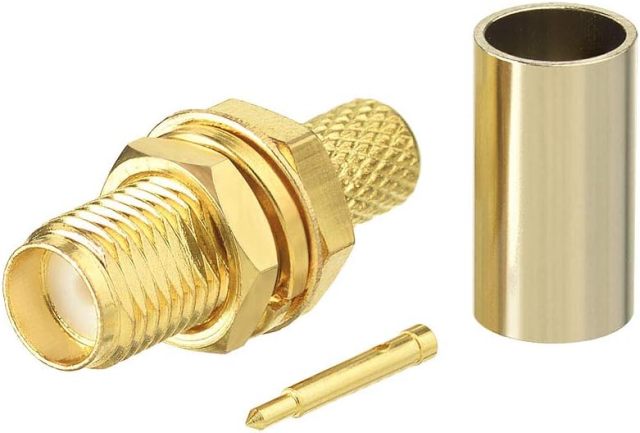

SUPERBAT RPSMA Crimp Connectors Kit RP-SMA Male + RP-SMA Female Crimp Solder Connectors Kit RG58 RG303 RG141 RG142 RG400 LMR195 Low Loss Coax Cable 10-Pack

No.B08F4SJZ5Z

Size:

Type 1

Type 2

Type 3

Color:

RPSMA

SMA

Description

Body Material： Brass
Contact Termination:Solder
Attachment Method： Crimp
Impedance:50 ohm

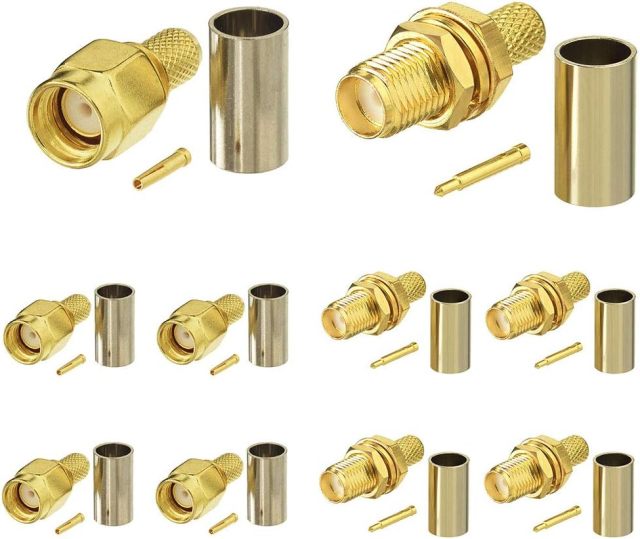

Package include: 5pcs RP-SMA Male Plug Connectors + 5pcs RP-SMA Female jack Connectors

This RP-SMA connector is designed for crimp attachment to the widely used RG58 and low-loss 195-series coaxial cables.
utilizing readily-available crimp tools with standard crimp sizes: .178" for the crimp ferrule and .068" for the pin.

Gold plated center contact for reduced signal loss.
Nickel plated body for enhanced corrosion resistance.
Complete with nut and lockwasher mounting hardware.
Use with RG58/RG141/RG142/RG303/RG400, LMR-195 HyperLink CA-195R, HyperLink CA195RW, WBC195, LMR195, Belden 8240/8219 Low Loss Coaxial Coax Jumper Cable.

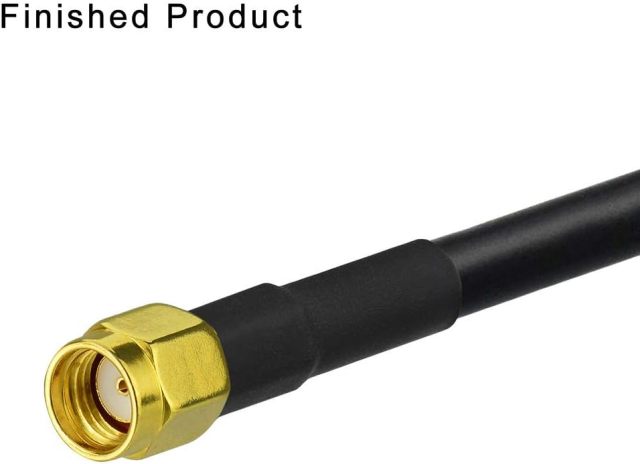

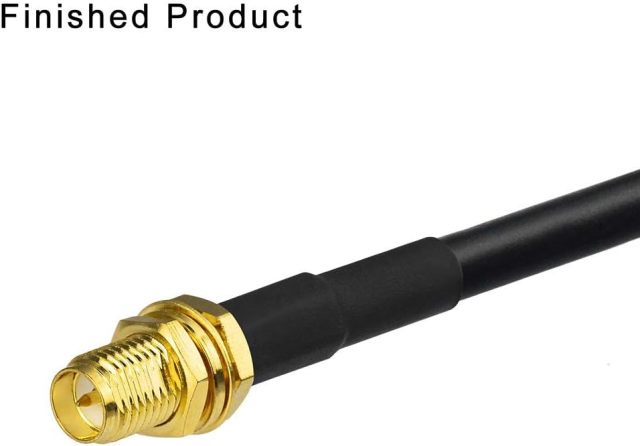

Build or Repair Coaxial Cable:
Use to create your own custom length RP-SMA cable assembly with this RP-SMA male/female crimp connector which is widely used in Wireless Communications Systems,Short Antenna Feeder runs or any other application (e.g. GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile Antennas)
It is so easy to install, is reliable, and is built to last.Use proper crimping tool for assembly It connected with any brand rp-sma female/male connector.
