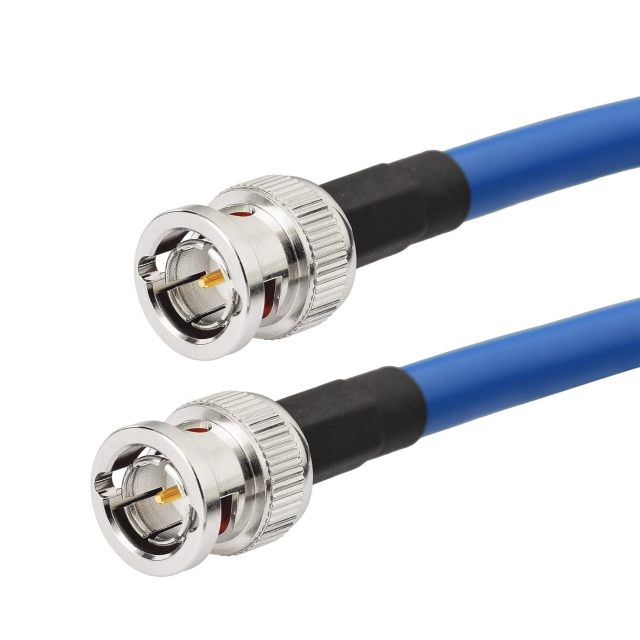

Superbat SDI Cable 200ft BNC Cable Belden 1694A + 3G/6G SDI Cable Spool Supports 3G-SDI/6G-SDI/4K/8K SDI Recorder Camera Monitor Router Audio Gateway Sync Broadcast etc.

No.B0BD35PLN2

Size:

1ft

2ft

2ft 2pcs

3ft

3ft 2pcs

6ft

6ft 2pcs

10ft

15ft

25ft

40ft

50ft

75 ft

100ft

150ft

200ft

250ft

300ft

Color:

No Cord Reel

With Cord Reel

Description

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

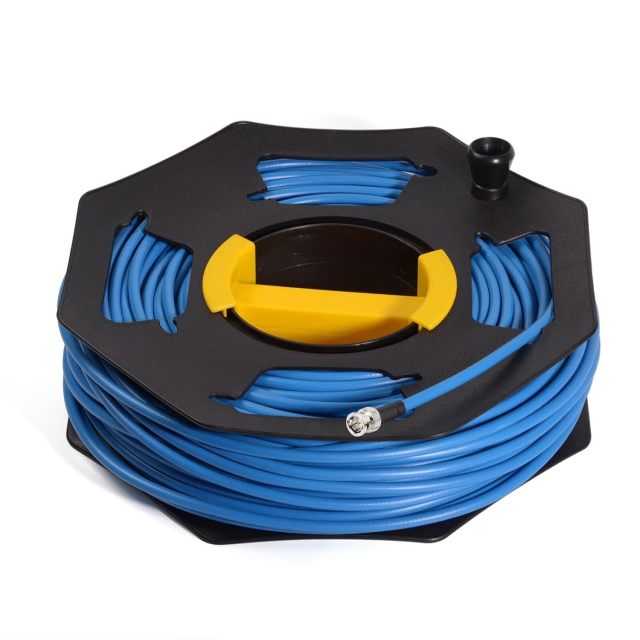

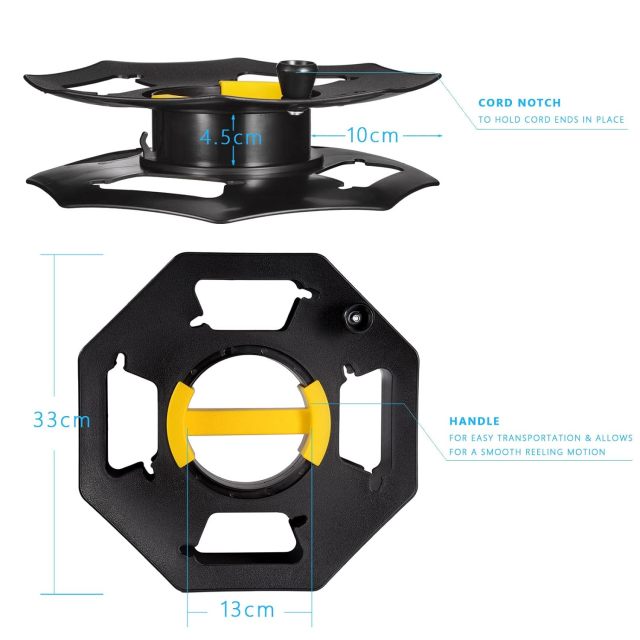

Long 3G/6G/12G/HD-SDI Cable 75Ohm BNC to BNC Digital Video Cable (Belden 1694A Blue) + sdi cable reel

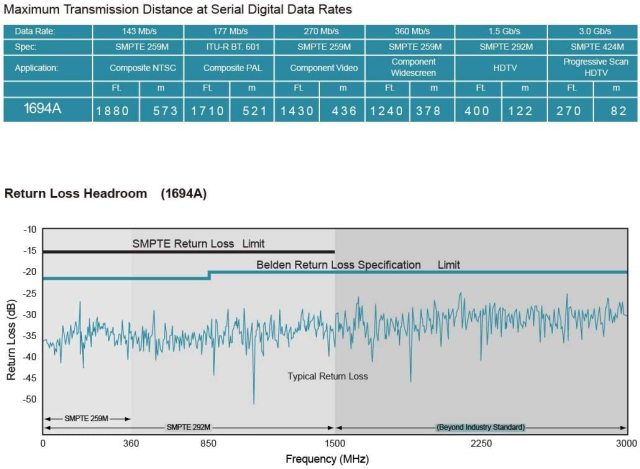

Serial Digital Data Rates

Standard Definition SD-SDI (270 Mbps, ST 259)

HD standard HD-SDI (1.483 Gbps, ST 292)

3G-SDI (2.97 Gbps, ST 424)

6G-SDI (5.94 Gbps, ST 2081)

12G-SDI (11.88 Gbps, ST 2082)

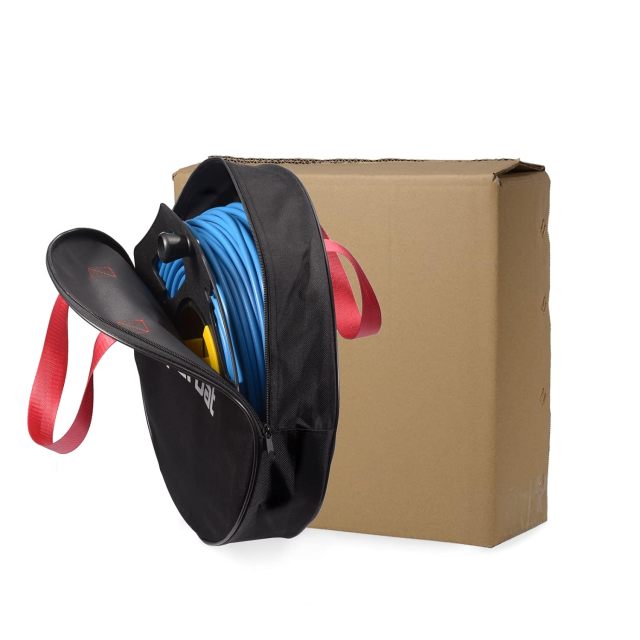

Packing: 1pcs sdi extension cord + 1pcs a spool + 1pcs superbat bag

Supported Devices:

6G-SDI cable designed to support the transfer of both rf and video signals, particularly hd quality video signals. Such as VCR/Camera/ CCTV Monitor/SDI Converter/Video Splitter/Oscilloscopes and etc.

Connect to SDI HDMI Converter and then to computer monitor . For Blackmagic Design Video Assist，12G-SDI HDMI HDR Recording Monitor，HDMI Audio，For Blackmagic Design Studio Monitor 3G Playback Device, Wireless HDMI/SDI Video Transmission System, Image Audio Transmitter Receiver etc.


Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.	Center conductor: 0.40" dia. bare copper Dielectric: 0.180" dia. foamed PE Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection PVC outer jacket - for durability and long-term protection.	50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables. 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level.

long 3g 6g sdi cable 100ft 150ft 200ft bnc cable 75ohm + sdi cable reel spool


	3G/6G/12G SDI BNC Cable	3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 1pcs	3G SDI 6G-SDI Cable BNC Cable Thin Short bnc Male to male Cable	Long 6g sdi cable BNC Coaxial Cable + Cord Reel	BNC Cable 3G/HD SDI Cable Coil Cable 75ohm BNC to BNC Extension Cable	3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 2pcs
	See Details	See Details	See Details	See Details	See Details	See Details
Customer Reviews	408	277	42	408	83	260
Cable type	Belden 1694A	RG179 coax cable	Belden 1855A	Belden 1694A	3C-2V A/V Cable	RG179 coax cable
Support	SD-SDI/HD-SDI /3G-SDI/6G-SDI	Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable	SD-SDI/HD-SDI /3G-SDI/6G-SDI	for HD-SDI/3G-SDI/6G-SDI/ 4K/8K，SDI Video Cable	SD-SDI/HD-SDI /3G-SDI	Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable


	BNC Cable 3G 6G SDI Cable	Long 3G 6G SDI Cable BNC Cable + SDI Cable Reel	BNC Cable 3G 6G SDI Cable	Short 12G SDI Cable 4K Thin BNC Cable	Long 12G SDI Cable BNC Cable + SDI Cable Reel
	See Details	See Details	See Details	See Details	See Details
Customer Reviews	2	3	12	7	—
Cable type	Belden 1694A Multi-coloured	Belden 1694A blue	Belden 1694A Black	Belden 4855R	Belden 4694R
Applications	for switcher, cameras, video mixer, SDI Converter, Recording Monitor, Image Audio Transmitter Receiver etc.	for switcher, cameras, video mixer, SDI Converter, Recording Monitor, Image Audio Transmitter Receiver etc.	for SDI Vedio Frame Grabber, SDI Video Audio Broadcast Router, SDI Switcher Hub, SDI Frame Synchronizer;	for switcher, cameras, video mixer, SDI Converter, Recording Monitor, Image Audio Transmitter Receiver etc.	for SDI Vedio Frame Grabber, SDI Video Audio Broadcast Router, SDI Switcher Hub, SDI Frame Synchronizer;
