Superbat SDI Cable BNC Cable HD-SDI 3G 6G 12G SDI Cable 15ft BNC Digital Video Cable 75 Ohm for 4K 1080P 3G/6G SDI Camera Monitor Video Recorder SDI to HDMI Converter Security Camera 1-Pack

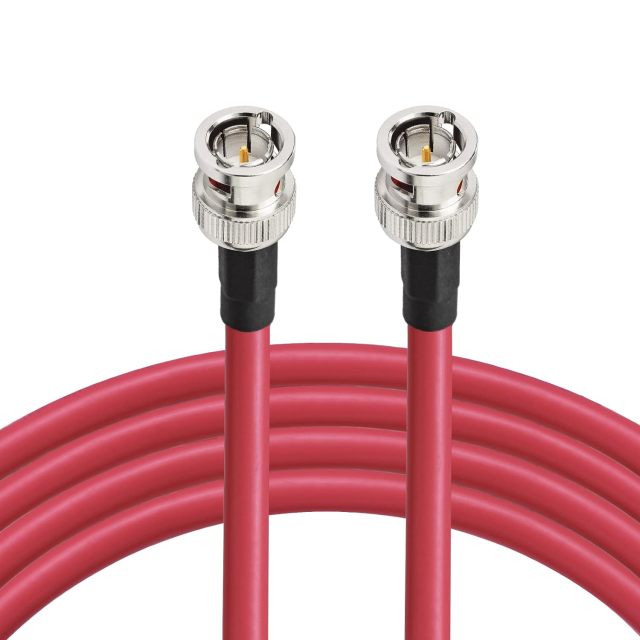

Superbat HD-SDI 3G/6G/12G SDI Cable 15ft BNC to BNC Video Cable 75Ohm (Belden 1694A )

Features and Specifications:

• Nominal impedance: 75 ohms-ideal - for audio and video
• Velocity of propagation: 82%
• Capacitance: 16.2 pF/ft.
• Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
• Overall diameter: 0.274".

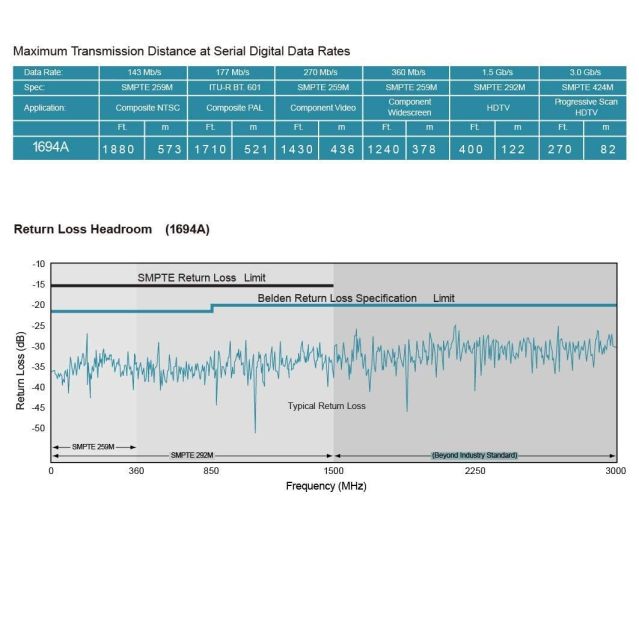

Serial Digital Data Rates

• Standard Definition SD-SDI (270 Mbps, ST 259)
• HD standard HD-SDI (1.483 Gbps, ST 292)
• 3G-SDI (2.97 Gbps, ST 424)
• 6G-SDI (5.94 Gbps, ST 2081)
• 12G-SDI (11.88 Gbps, ST 2082)

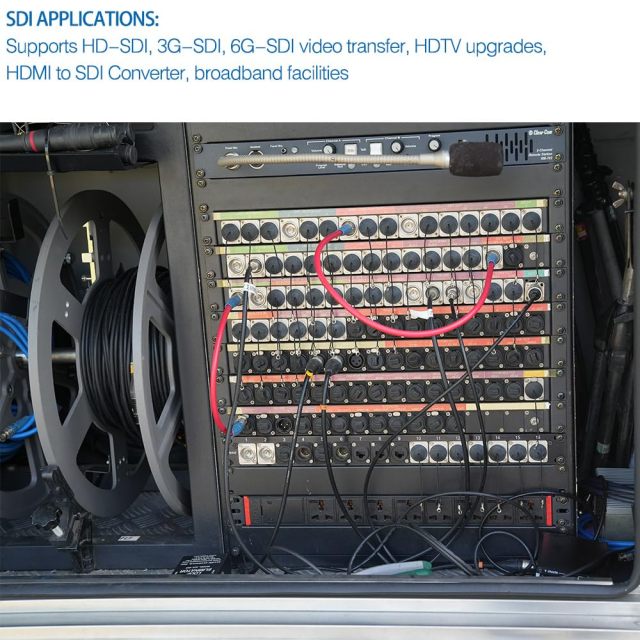

BNC cable and security camera cable for all HD CCTV DVR surveillance systems, Wireless HDMI/SDI Video Transmission System, Image Audio Transmitter Receiver etc.

Well for Blackmagic Design Video Assist，Blackmagic Design Studio Monitor Playback Device, 12G-SDI HDMI HDR Recording Monitor ,HDMI Audio etc.

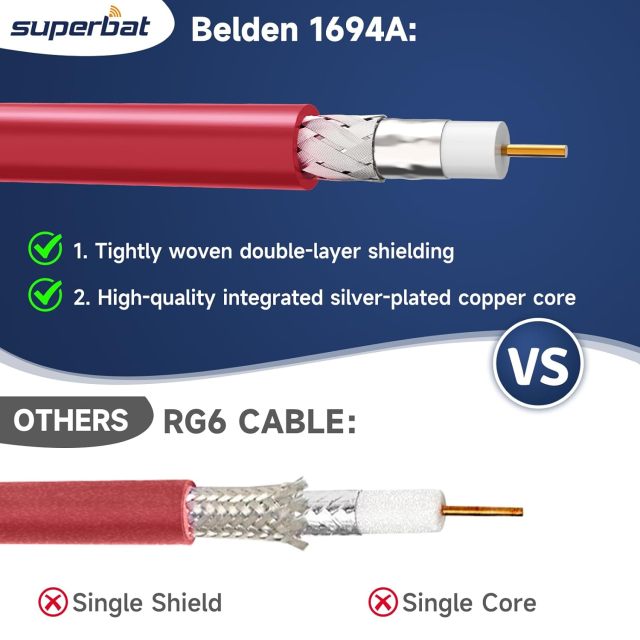

• Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals. The center conductor is made from true 75 Ohm 18AWG solid copper.
• This sdi cable is 100% sweep and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.
• Center conductor: 0.40" dia. bare copper
• Dielectric: 0.180" dia. foamed PE
• Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection
• PVC outer jacket - for durability and long-term protection.
• 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
