Home > All Collections > RF Cable Assemblies > BNC Cable > Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable

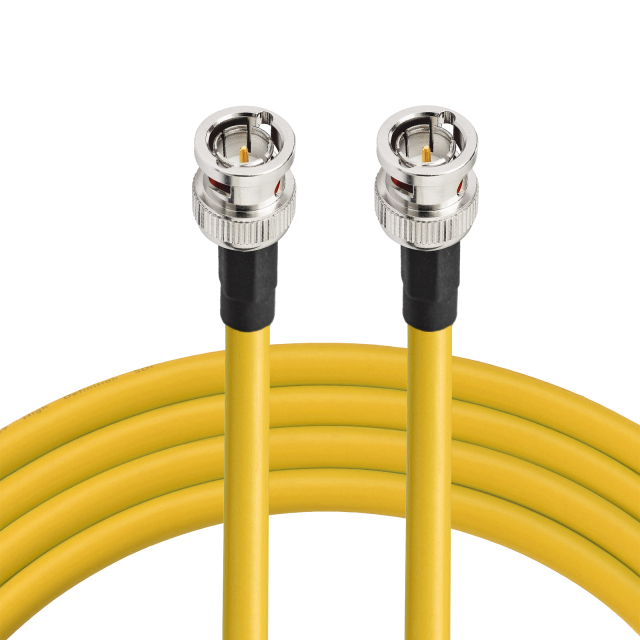

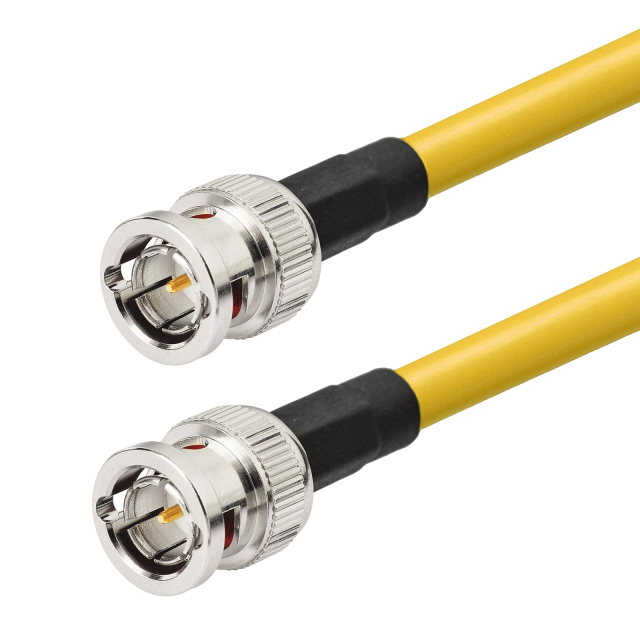

Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable

No.AC-B04SP-B04SP-1694A-HuangS-X

Cable Type：Belden 1694A Cable Impedance：75 ohmConnector 1 Series：BNCConnector 2 Series：BNCConnector 1 Gender：PlugConnector 2 Gender：PlugConnector 1 Polarity：StandardConnector 2 Polarity：StandardBody Style 1：Straight Body Style 2：Straight
Cable length:
Customize as to needs
Cable Color:
Yellow
Black
Red
Blue
Green
CONTACT US
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
  • Superbat SDI Video Cable BNC Male to BNC Male Using Belden 1694A Yellow Coax Cable
Description
3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

Features and Specifications:

  • Nominal impedance: 75 ohms-ideal - for audio and video
  • Velocity of propagation: 82%
  • Capacitance: 16.2 pF/ft.
  • Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
  • Overall diameter: 0.274".

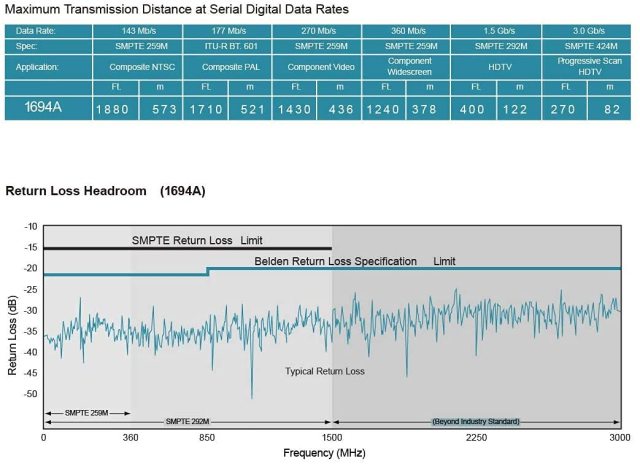

Serial Digital Data Rates

  • Standard Definition SD-SDI (270 Mbps, ST 259)
  • HD standard HD-SDI (1.483 Gbps, ST 292)
  • 3G-SDI (2.97 Gbps, ST 424)
  • 6G-SDI (5.94 Gbps, ST 2081)
  • 12G-SDI (11.88 Gbps, ST 2082)
