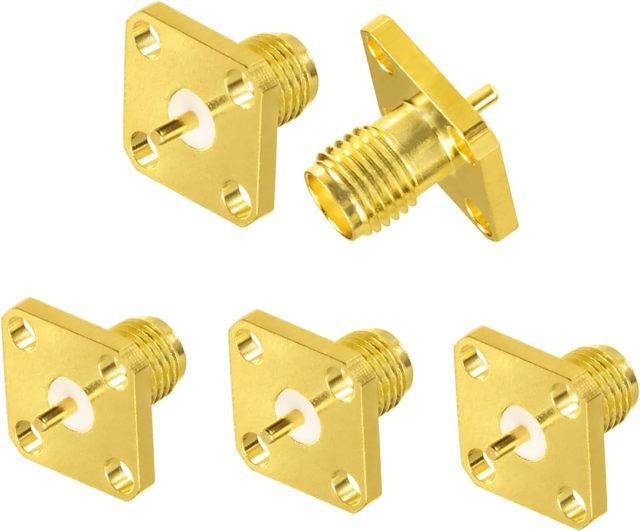

Superbat SMA Connectors SMA Female 4 Holes Panel Chassis Mount Flange Solder Cup Connector SMA Bulkhead Connector 5-Pack

No.B09V56M19Q

Color:

0.032 inch Straight Connector

0.051 inch Straight Connector

0.062 inch Straight Connector

4 Hole Flange Solder Connector

Right Angle Connector

Description

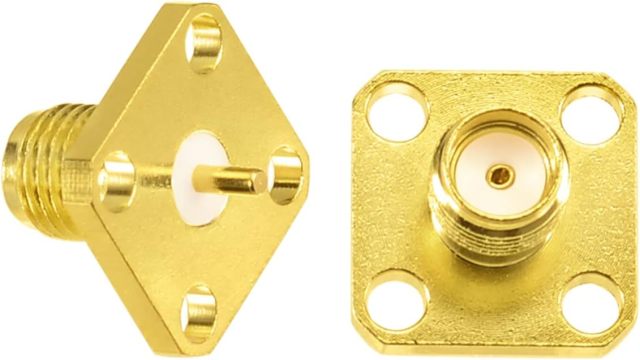

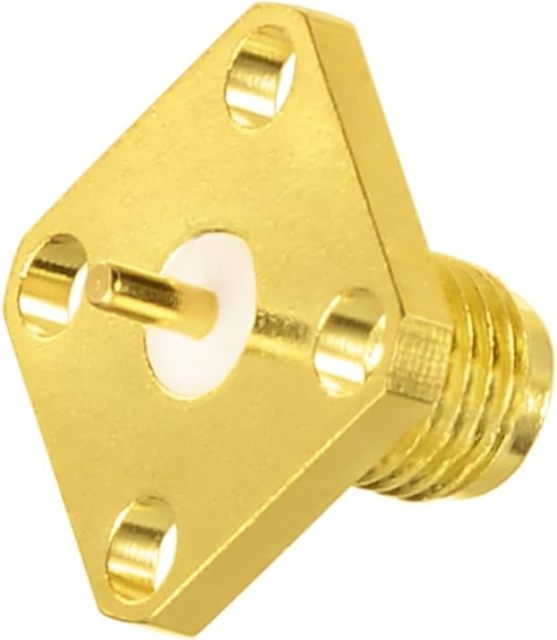

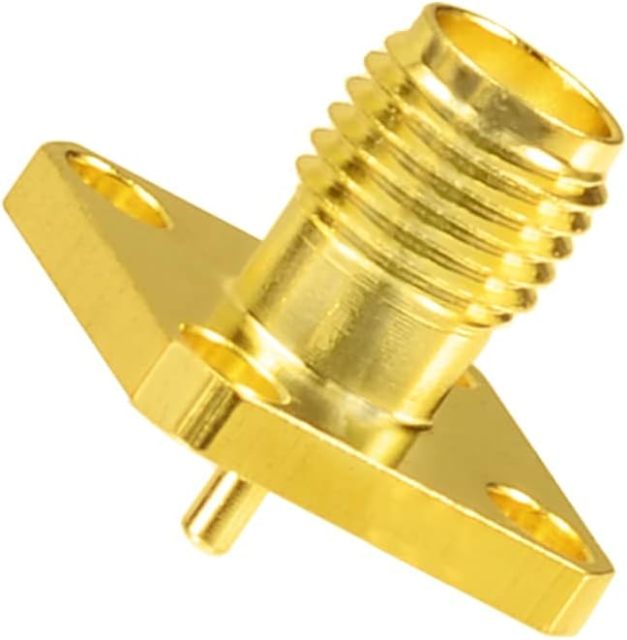

SMA Female 4 Holes Panel Chassis Mount Flange Solder Post Connector SMA Bulkhead Connector

Superbat SMA Panel Mount Connector SMA female 4-Hole Flange Chassis Solder Coax Adapter

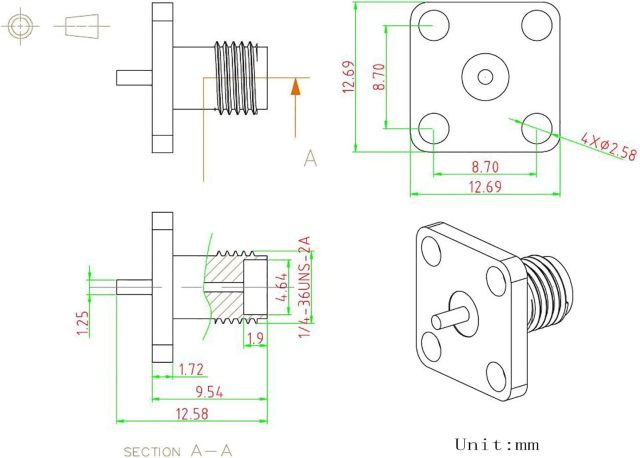

The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012.IEC 169-15 and CECC 22110.
Offers excellent electrical performance and excellent mechanical durability.
Terminates all standard flexible coaxial cables, low loss (LMR) type cables and industry standard semi-rigid and conformable cables.

Series: SMA connector
Termination Type：PCB
Gender：Jack , Female
Mount Method：4 Hole Flange
Impedance：50 ohm
Attachment Method：Solder
Body Material：Brass
Body Plating：Gold
Dielectric Type：PTFE

For SDR/IF out ports on Yaesu HF radios, test equipment, Coaxial cable, plane radials and a radiator, wires, cabling setup, FPV devices, module, router,telecom, wireless LAN Devices, RF Applications etc.
