Features:
Category:Connectors, Interconnects
Family:Coaxial, RF - Adapters -SMA
Series:IN-Series

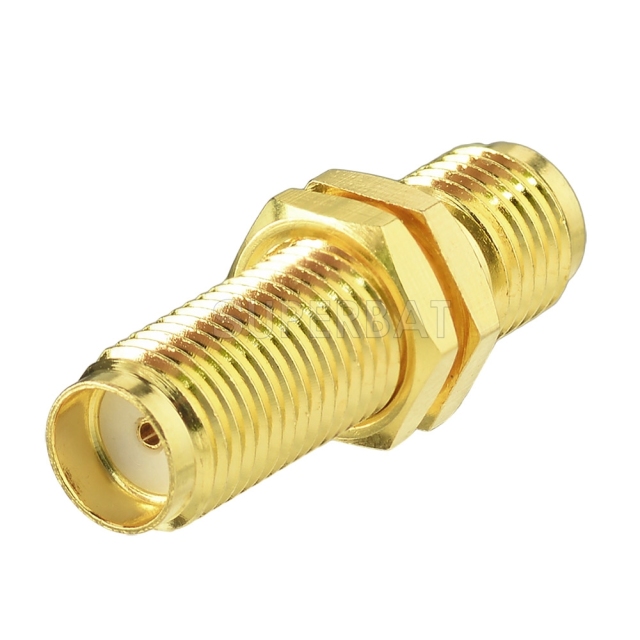

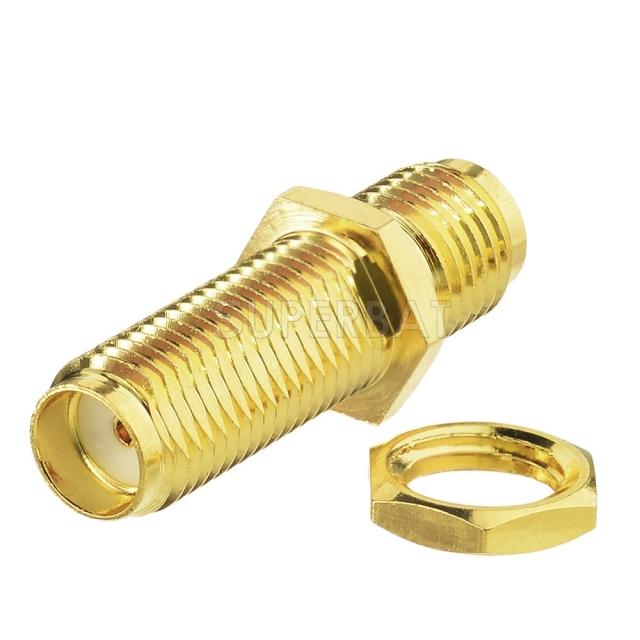

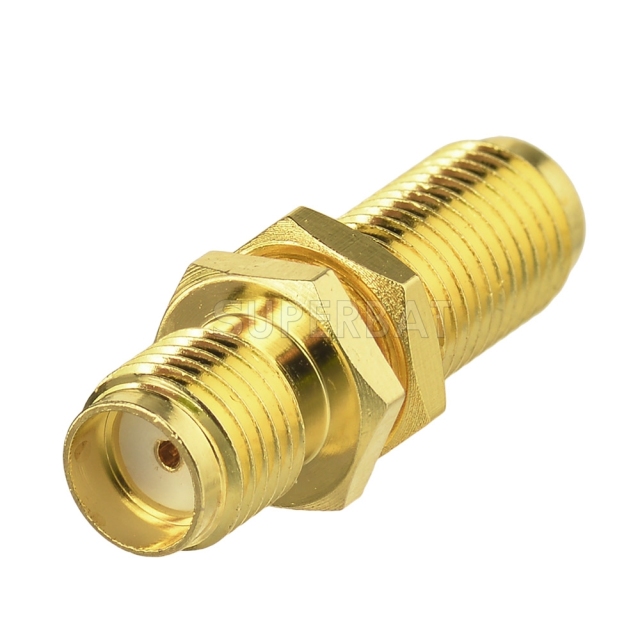

Convert From (Adapter End):SMA Jack, female Pin
Convert To (Adapter End):SMA Jack, female Pin
Impedance:50 Ohm
Frequency: 3GHz
Material:Brass
Plating:Gold-plated
Style: Straight
Features:bulkhead
Mounting Type:Free Hanging (In-line)
DESCRIPTION：
RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or RP.
RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 262 hole panel configurations.
RF adapters in standard and high performance with brass body .The stainless steel body will be customized !
