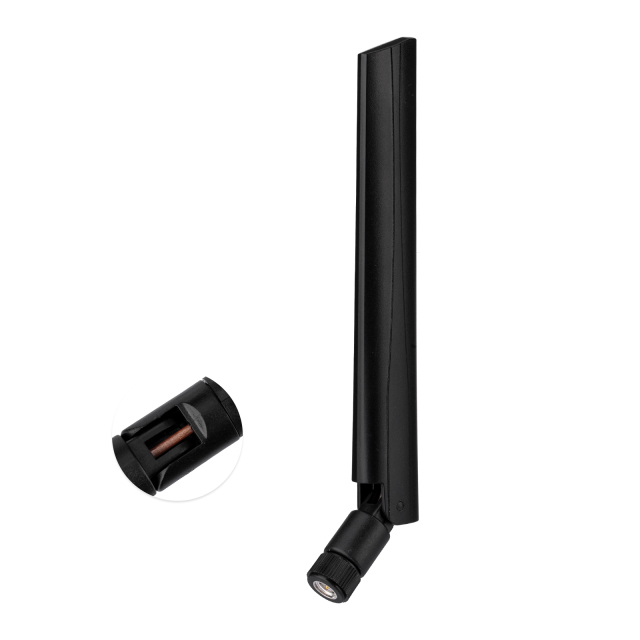

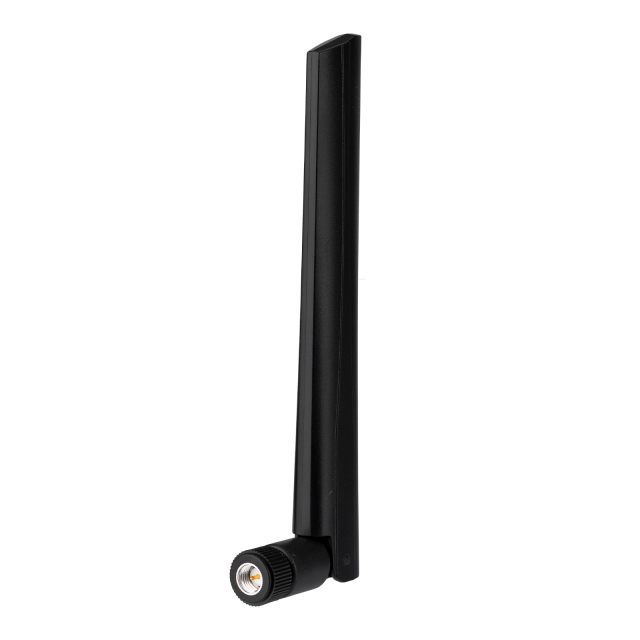

Superbat SMA Male Multi-band 600-4900MHz Omni Directional 4G 5G Antenna

No.5A2-0387-S01SP-030
Antenna Type：Rubber DuckNetwork：5G AntennaFrequency：600-4900MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：3 dBiRadiation：OmnidirectionalV.S.W.R：2.0
CONTACT US
  • Superbat SMA Male Multi-band 600-4900MHz Omni Directional 4G 5G Antenna
  • Superbat SMA Male Multi-band 600-4900MHz Omni Directional 4G 5G Antenna
  • Superbat SMA Male Multi-band 600-4900MHz Omni Directional 4G 5G Antenna
  • Superbat SMA Male Multi-band 600-4900MHz Omni Directional 4G 5G Antenna
Description

Antenna Type: 5G Antenna


Frequency: 600-4900MHZ


V.S.W.R: < 2.0


Gain: 3 dBi


Impedance: 50 Ohm


Radiation: Omnidirectional


Temperature: -40〜85 deg C

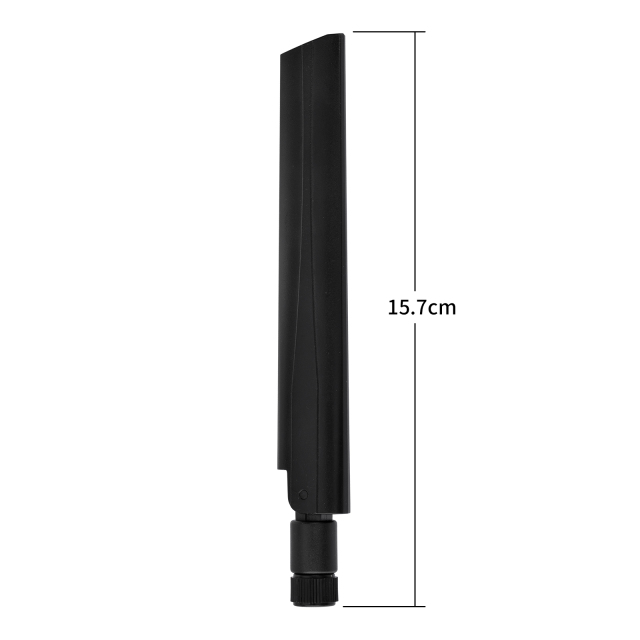

Length: 157mm


Antenna Connector type: SMA Male


Fit for: 5G Router
