Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System

No.B07K116YHB
Color:
Circular Antenna
Square Antenna
CONTACT US
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
  • Superbat Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector for GPS Navigation Head Unit Car Telematics 4G LTE System
Description

cable

connector

ABS Material Waterproof

Adhesive&Magnet Easy Install

RG174 Coaxial Cable

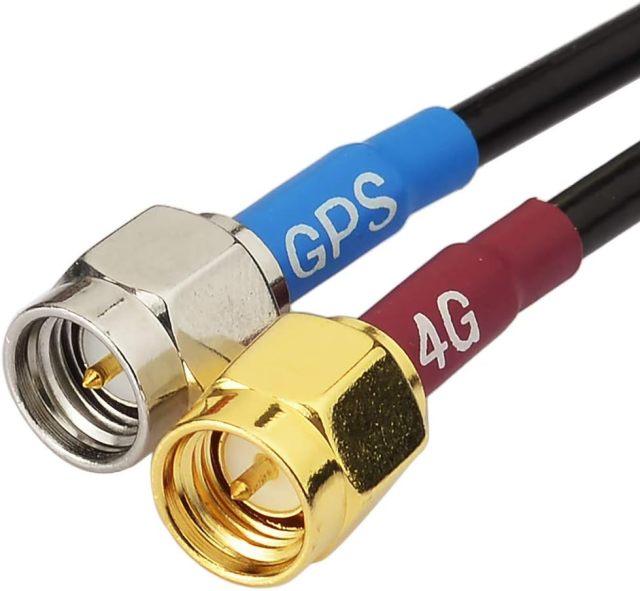

GPS/4G Double SMA Male Connector

ABS Material Waterproof

Adhesive&Magnet Easy Install

Used scene

2 in 1 Vehicle GPS BEIDOU 4G LTE Magnetic Mount Combined Antenna for GPS BEIDOU Navigation Head Unit Car Telematics 4G LTE Mobile Cell Phone System

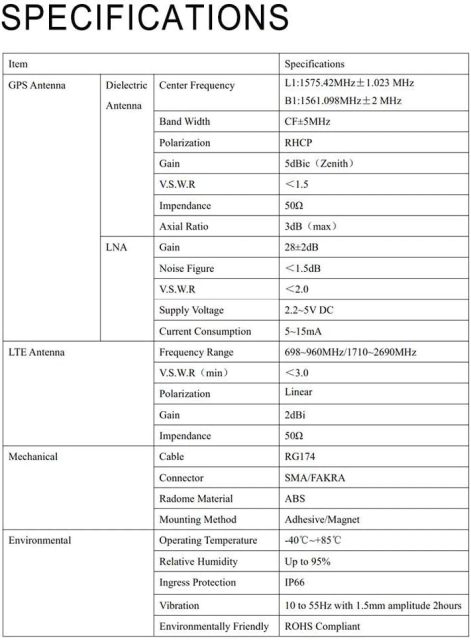

  • Mechanical:
  • Cable: RG174
  • Cable Length: 3 Meters
  • Connector: SMA Male Connector
  • Material: ABS
  • Mounting Method: Adhesive/Magnet
  • Environmental:
  • Operating Temperature: -40℃~+85℃
  • Relative Humidity: Up to 95%
  • Ingress Protection: IP66
  • Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
  • Environmentally Friendly: ROHS Compliant

  • Navigation Antenna Specification:
  • GPS Frequency: L1:1575.42MHz±1.023 MHz
  • BEIDOU Frequency: B1:1561.098MHz±2 MHz
  • Band Width：CF±5MHz
  • Polarization：RHCP
  • Gain: 5dBic（Zenith）
  • V.S.W.R: ＜1.5
  • Impendance: 50Ω
  • Axial Ratio: 3dB（max）
  • LNA Gain: 28±2dB
  • LNA Noise Figure: ＜1.5dB
  • LNA V.S.W.R: ＜2.0
  • LNA Supply Voltage: 2.2~5V DC
  • LNA Current Consumption: 5~15mA

  • 4G LTE Antenna Specification:
  • Frequency Range: 698~960/1710~2690MHz
  • V.S.W.R: ＜3.0
  • Polarization: Linear
  • Gain: 2.0dBi
  • Impendance: 50Ω

Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector GPS + 4G LTE Combination Antenna Magnetic Mount with SMA Connector 4G LTE GSM Omni-Directional Adhesive Mount Antenna with SMA Male Connector SMA Male to Male Right Angle Cable Jumper Coaxial SMA Male to SMA Female Bulkhead RG174 Cable + 3pcs Coax SMA Adapter Kit
Vehicle GPS + 4G LTE Magnetic Mount Combination Antenna with SMA Connector GPS + 4G LTE Combination Antenna Magnetic Mount with SMA Connector 4G LTE GSM Omni-Directional Adhesive Mount Antenna with SMA Male Connector SMA Male to Male Right Angle Cable Jumper Coaxial SMA Male to SMA Female Bulkhead RG174 Cable + 3pcs Coax SMA Adapter Kit
See Details
See Details
See Details
See Details
See Details
Customer Reviews
4.0 out of 5 stars
19
4.0 out of 5 stars
19
4.2 out of 5 stars
229
4.4 out of 5 stars
50
4.4 out of 5 stars
1,850
Gain 5dBi/2dBi 5dBi/2dBi 3dBi
Cable length 10ft 10ft 10ft 12 Inch / 3ft 3ft/6ft/10ft/16ft
