（i） Dieletric Antenna

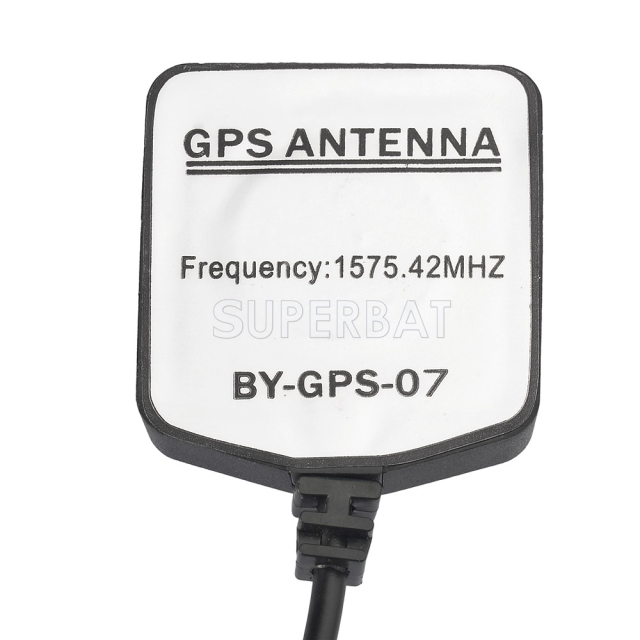

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
（iii）Mechanical
Weight ＜100gram

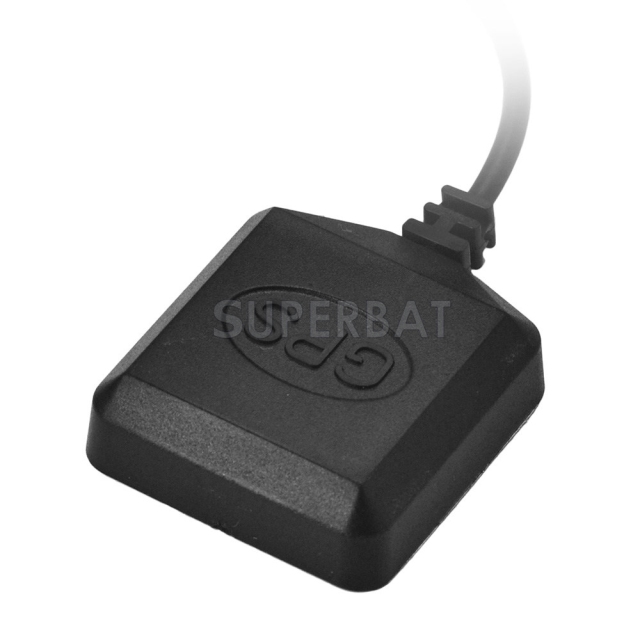

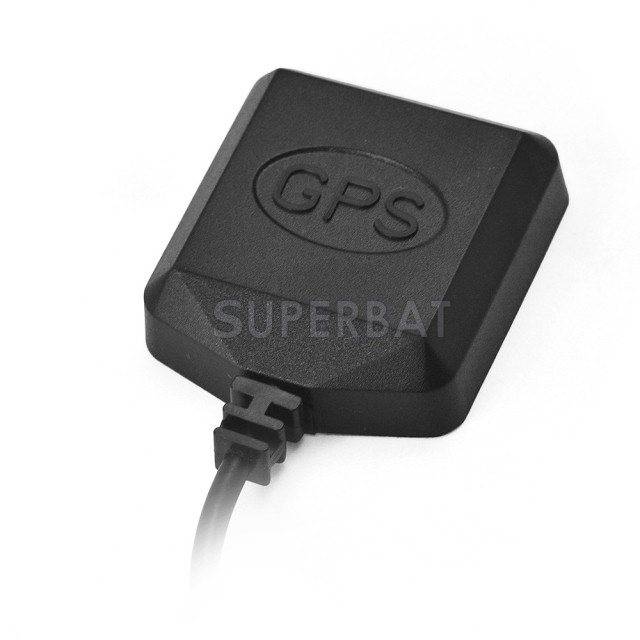

Size 38x34x11mm

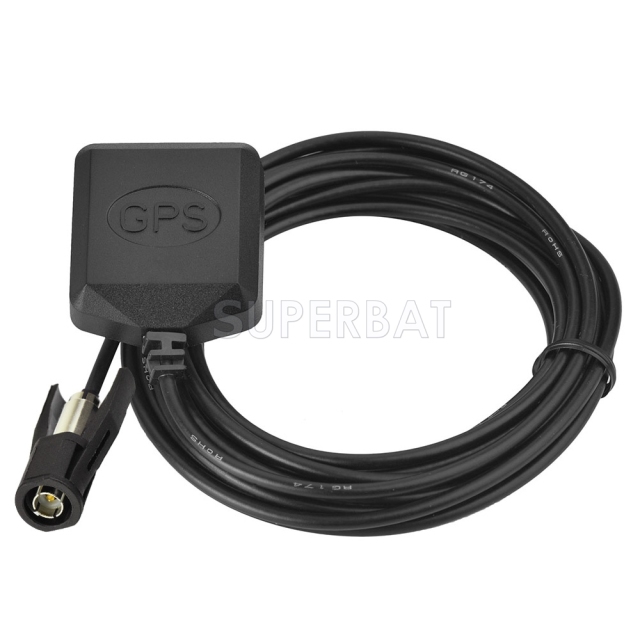

Cable :RG174 3 meter / contact us for other length

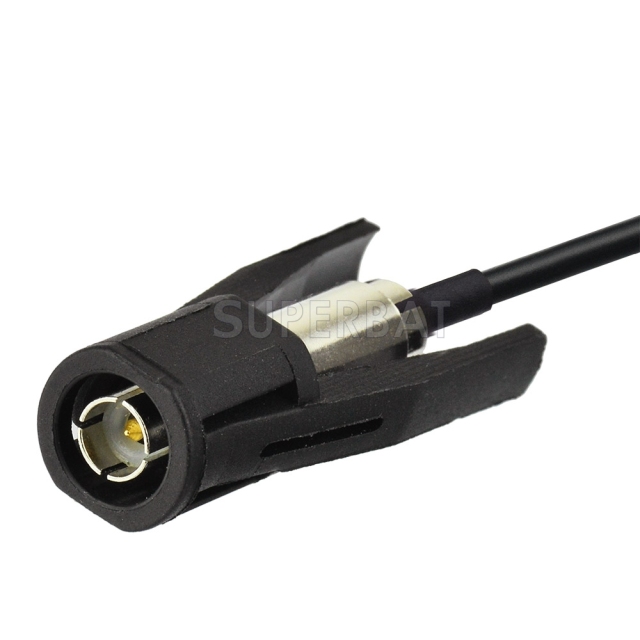

Connector :WICLIC male straight default/ SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Mounting: Magnetic base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APLICATIONS:
Pioneer
ANH-P9R
ANH-P-9R-BK
ANH-P 10MP
KD-NX1
KD-NX1R
KD-NX1B
KDNX301
Becker
Becker Traffic Pro 4720, 4723, 4724, 4725, 4730, 4733, 6549
Becker Traffic High Speed 7820, 7822, 7823, 7824, 7825, 7830, 7833
Becker Indianapolis 7920, 7922, 7925, 7923, 7935
Not all applicable models are listed. If you have any questions about the product, please contact us. The length of the antenna can be customized.
