Specification
Dielectric：
XM:2320-2345mhz
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance：50ohm
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at -90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
LNA/Filter
LNA Gain (Without cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
Mechanical
Weight（gram）:131g
Size（mm）：84×53.8×62
Cable Length（m）：0.3 m (RG174)
Connector ：FAKRA curry female code K

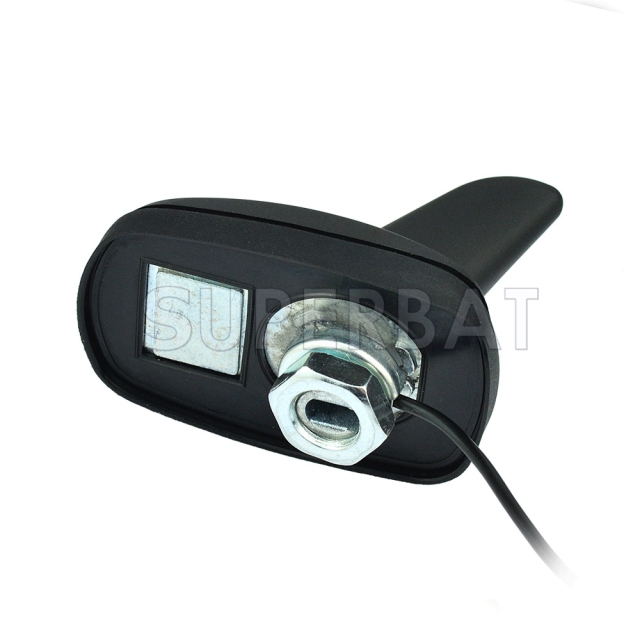

Mounting：Screw(Hole/Roof)
Housing：Black
Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof

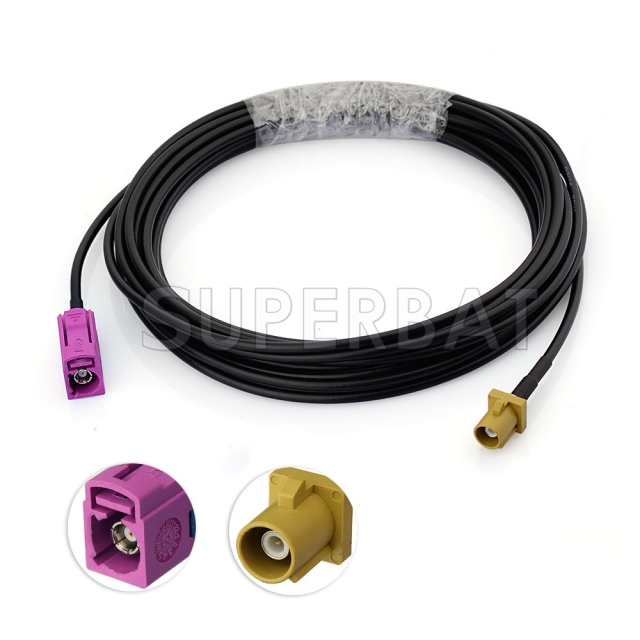

Antenna Replacement Cable
Connector:Fakra"K" male to Fakra"H" female
Cable:RG174 5M

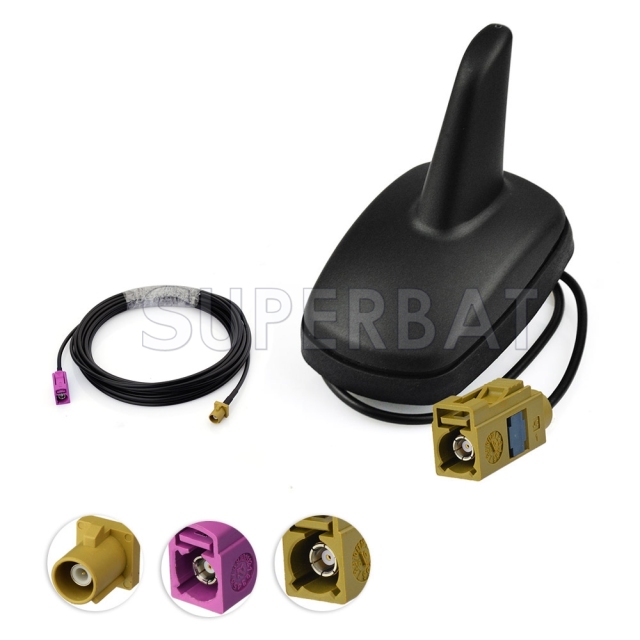

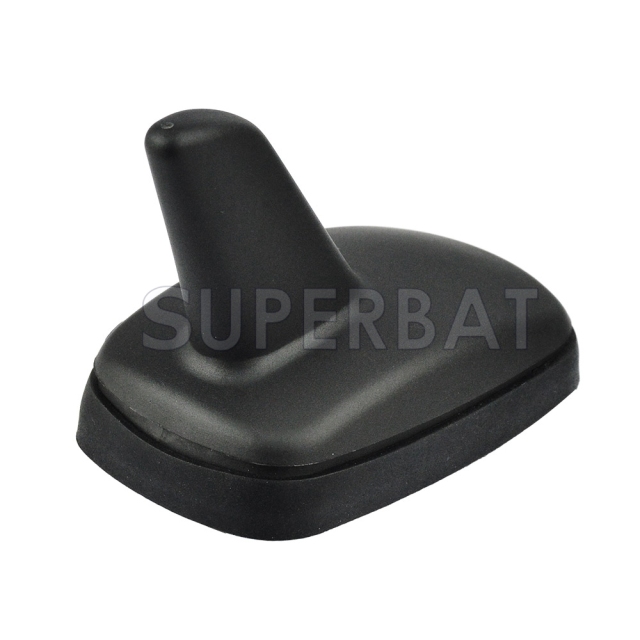

Package included:1pcs fakra Shark Fin Antenna
1pcs 5m Antenna Replacement Cable
Listing Suitable for the following Satellite Radio
SKYFi
SKYFi2
XMD1000
XM Commander
