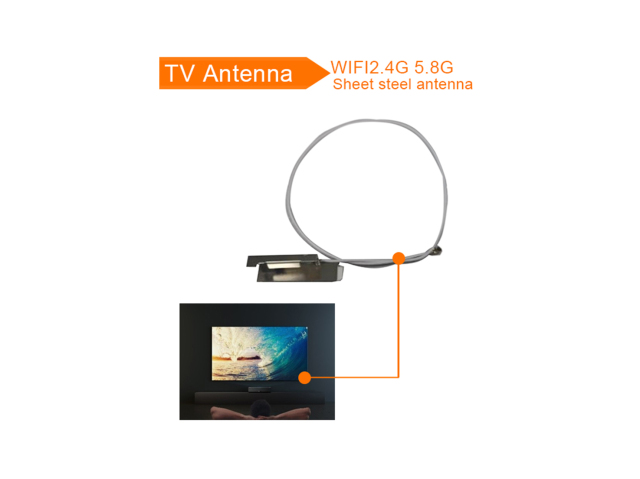

Wi-Fi 4G 5.8G Steel sheet digital TV antenna
Professional OEM and ODM Antenna Designer and Manufacturer
Frequency Range (MHz) ：2.4G/5.8G
Bandwidth (MHz) ：1oo
Input Impendence (Ω) ：50
V.S.W.R ：≤3.0
Gain (dBi) ：Max 5dBi
Polarization Type ：Vertical
Power Capacity (w) ：50
Connect Type ：iPex
Working Temp(℃) ：-20~75
Dtmb/HDTV digital TV antenna, the basic function of a television antenna is to capture radio signals sent from a television station, which typically travel within the very high frequency (VHF) and ultra-high frequency (UHF) bands. By receiving these electromagnetic waves and converting them into electrical signals, the antenna enables the television to decode and display television programs.
Antenna matching circuit

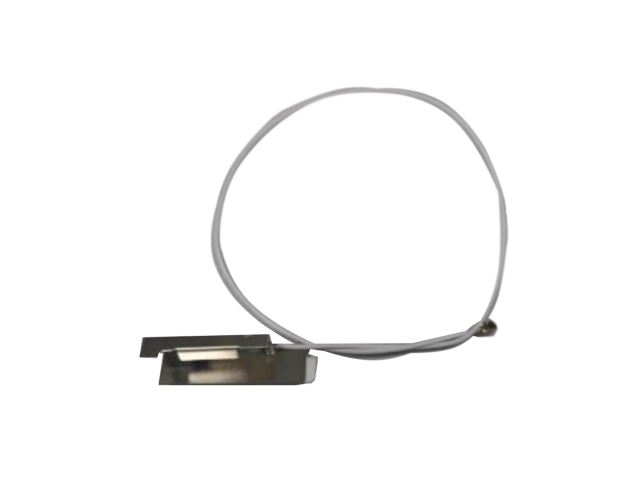

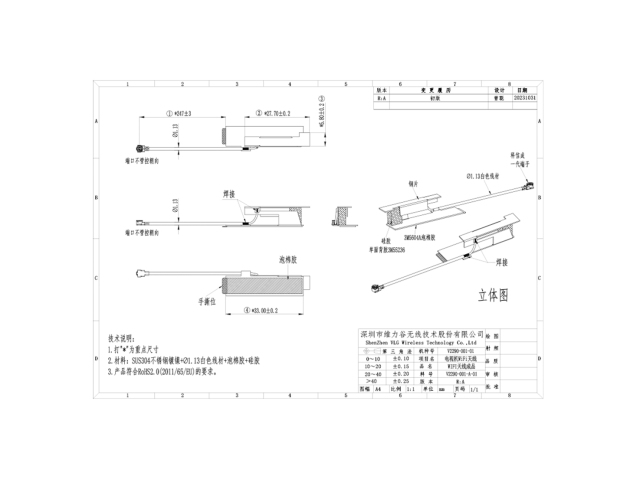

The TV WIFI antenna is composed of steel sheet + coaxial line, and the matching circuit of this project is provided by the customer.
• Small size and easy to install
It is small in size and designed to be placed indoors, such as near a television. Although convenient, the reception effect may be limited by the structure of the building and the distance from the broadcast tower.
• High gain good signal
It can enhance the signal reception ability, and the omnidirectional antenna can receive signals from multiple directions
• Durable and durable
ABS durable and drop resistant

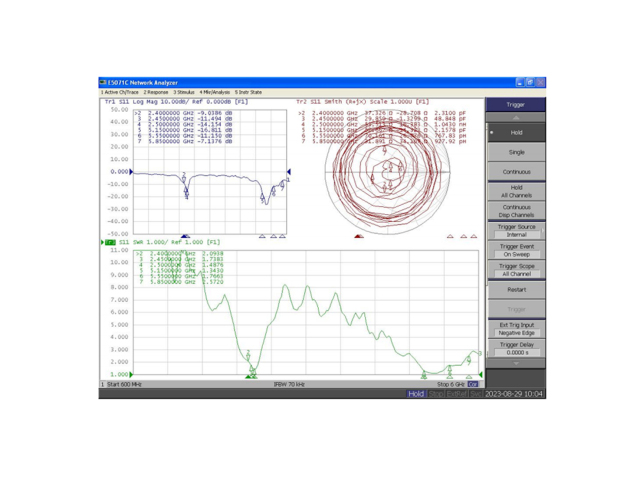

| Frequency Range (MHz) | TX | VSWR | Frequency Range (MHz) -RX | VSWR |
| 2.4 GHz | 2400-2500 | ≤3.0 | 2400-2500 | ≤3.0 |
| 5.8 GHz | 5150-5850 | ≤3.0 | 5150-5850 | ≤3.0 |
 |
 |
|||
Confidential Information
| Frequency (MHZ) | Efficiency | Gain (dBi) | Frequency (MHZ) | Efficiency | Gain (dBi) |
| 2400 | 46.49% | 2.04 | 5150 | 56.89% | 4.96 |
| 2410 | 47.42% | 2.1 | 5200 | 55.70% | 5.13 |
| 2420 | 48.21% | 2.16 | 5250 | 55.63% | 5.08 |
| 2430 | 48.73% | 2.22 | 5300 | 57.91% | 4.85 |
| 2430 | 49.31% | 2.21 | 5350 | 56.33% | 4.74 |
| 2440 | 49.25% | 2.12 | 5400 | 55.81% | 4.68 |
| 2450 | 49.72% | 2.02 | 5450 | 54.06% | 4.59 |
| 2460 | 50.29% | 2.02 | 5500 | 53.43% | 4.26 |
| 2470 | 50.57% | 1.9 | 5550 | 50.27% | 4.1 |
| 2480 | 51.24% | 1.81 | 5600 | 47.28% | 4.03 |
| 2490 | 51.27% | 1.82 | 5650 | 45.54% | 4.18 |
| 2500 | 43.52% | 1.84 | |||
| 5700 | 42.67% | 4.18 | |||
| 5750 | 41.68% | 4.27 | |||
| 5800 | 38.70% | 4.17 | |||
| 5850 | 38.70% | 4.1 |
