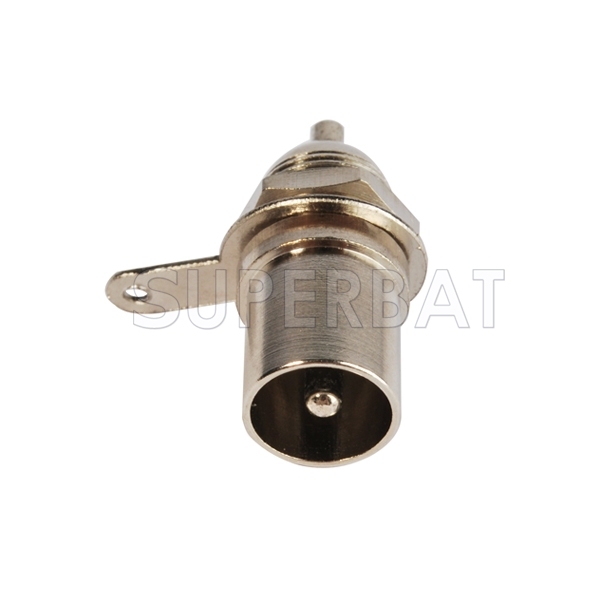

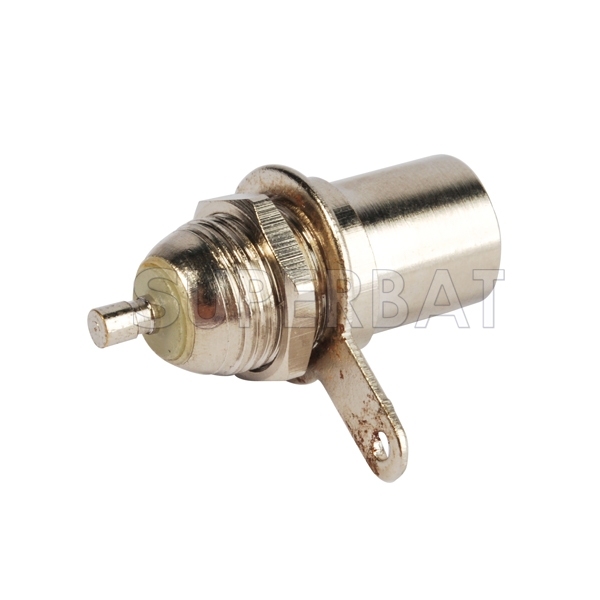

TV connector are mainly used in TV video link a product quality practical meet method is simple and clear family entertainment television station and so on hotel meeting the indispensable parts.
Technology Parameter:
Electrical characteristic
Characteristic Impedance 50 Ω
Frequency Range DC-11GHz
Insertion Loss DC-1GHz ≤0.1dB
1-2 GHz ≤0.14dB
2-3 GHz ≤0.16dB
VSWR DC-1GHz ≤1.06
1-3 GHz ≤1.1
Dielectric Withstanding Voltage 2500 VAC
Dielectric Resistance 5000MΩ
Inner Conductor 1mΩ
Contact Resistance Outer Conductor 0.25mΩ
Durability 500 Cycles
Working Environment
Temperature Range -55---+155 °C
Water-Proofing IP68
MATERIAL & PLATING
Shell.................Brass ...................Nickelplated
Inner conductor.......Beryllium or tin brass ....Nickelplated
Insulator ............PTFE
Crimping suite........Copper alloy ..............Nickelplated
