This antenna cable is compliant for all types of wireless antennas, including : WiFi & WiMax networks: 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, ISM, GSM, LTE antennas, as well as any other frequency between 0 and 18GHz.
Fit 7260NGW Intel Dual Band Wireless-AC, Intel Wireless Gigabit Antenna M10041R, Intel Tri-Band Wireless-AC 17265, 7260 802.11ac WIFI Board
IPEX Cables Have Bulkhead Gold Plated Connector, IPX UFL Terminal Block Connector for mini pci card, U.FL MHF4, Wide application: Mobile phones, Antenna, WLAN, Mini PCI, Bluetooth, PDA, GPS, drone, transmitter, electronic measuring instrument

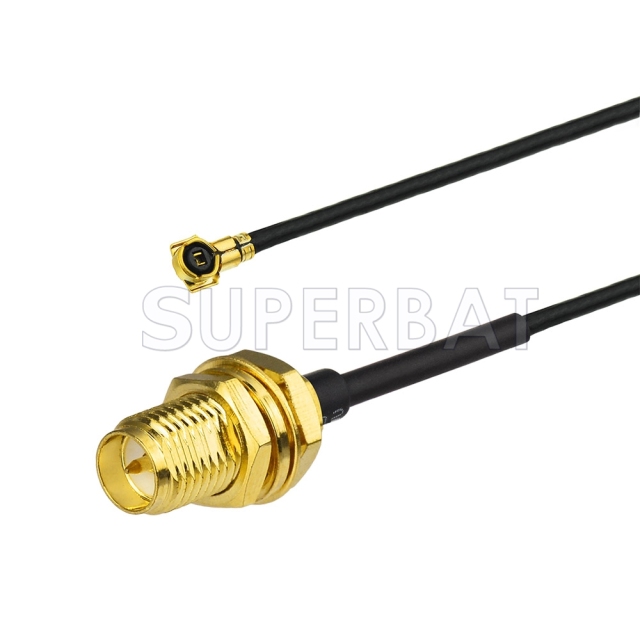

Gender: RP SMA Female /Ufl./Ipx MHF4;
Cable Length: 15cm,30cm,etc optional
Applicable cable: 0.81mm
RF coaxial cable; Application Technology: IEEE802.12 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless
The MHF4 to RP-SMA series cable is impedance matched to 50 ohm cables.
The MHF4 to RP-SMA series coaxial cables have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. Their consistently low broadband VSWR has made them popular over the years in many applications.
MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world, which provides good working performance in various applications of Wireless LAN. This very thin cable is typically needed in tight spaces inside of enclosures so that the U.FL connector will snap down on the jack without popping off.
Custom Service: if you require the different length with the same both ends of connectors or other types of RF cable assemblies, welcome to build the cable through our RF Custom Cable Wizard:
https://www.rfsupplier.com/customcable.html
