Dielectric antenna specification
Center frequency: 1575.42mhz+/-2 MHZ
V. S. W. R: <1.5
Band width: Band width
Attenuation fo: +/-100mhz>30db
Impendence: 50 ohm
Peak gain: >3dbic based on 7*7cm ground plane
Gain coverage: >-4dbic at -90<0<+90(over 75% volume)
Polarization: rhcp
Lna specification
Lna gain(without cable): 28dB,35dB,45dBtypical
Noise figure: 1.5db
Dc voltage: 3-5V
Dc current: 20MA max
Mechanical specification
Weight: < 400g

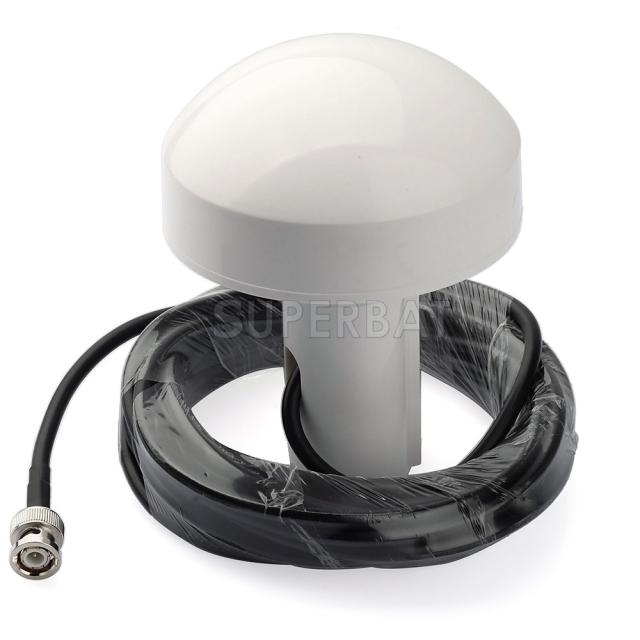

Cable: Coax cable RG58
Cable Length: Optional 5M / 3M / 10M ,contact us

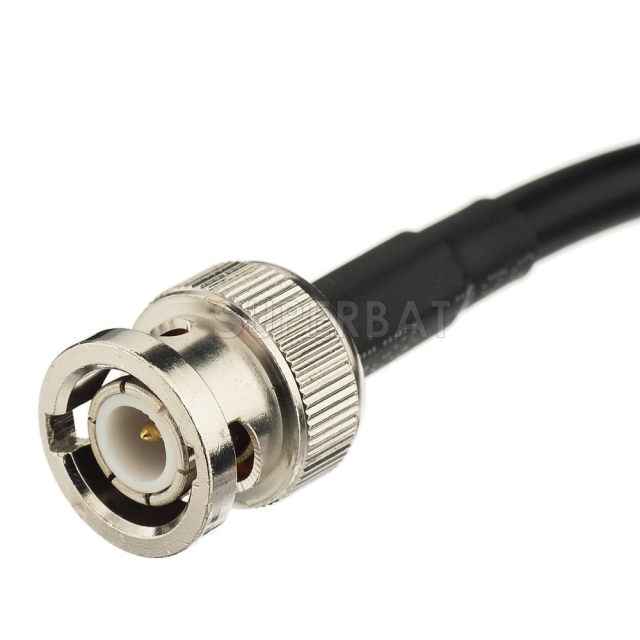

Connector: BNC male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

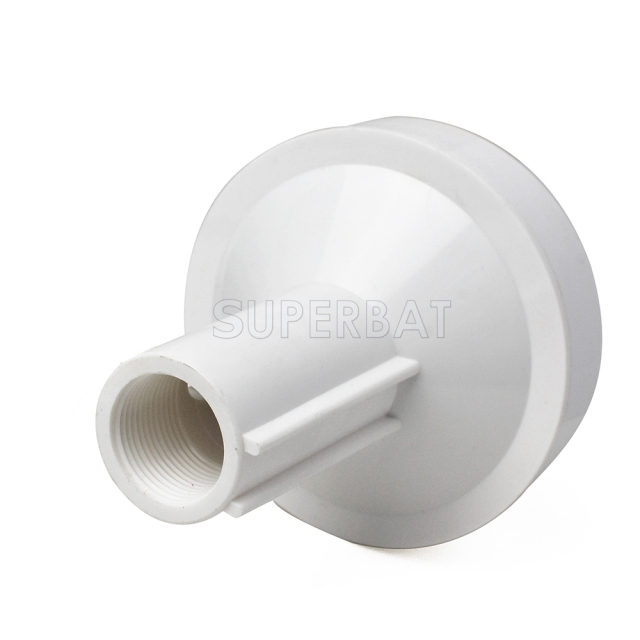

Mounting base: Screw
Environmental specification
Working temp: -40~+85
Storage temp: -40~+100
Vibration sine sweep: 1g(0-p)10~50~10hz each axis
Humidity: 95%~100%rh
Weatherproof: 100%
