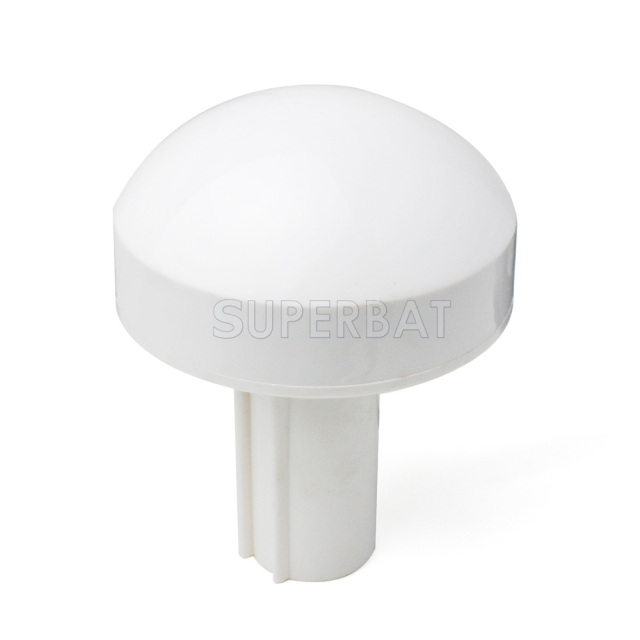

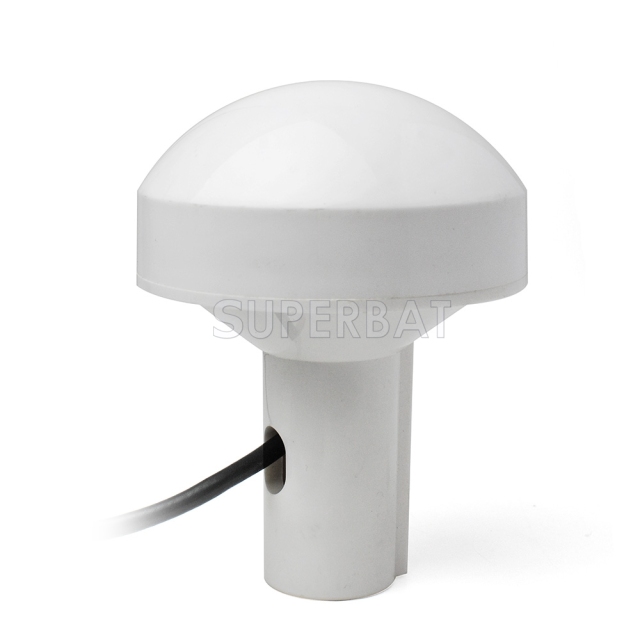

Dielectric antenna specification
Center frequency: 1575.42mhz+/-2 MHZ
V. S. W. R: <1.5
Band width: Band width
Attenuation fo: +/-100mhz>30db
Impendence: 50 ohm
Peak gain: >3dbic based on 7*7cm ground plane
Gain coverage: >-4dbic at -90<0<+90(over 75% volume)
Polarization: rhcp
Lna specification
Lna gain(without cable): 28dB,35dB,45dBtypical
Noise figure: 1.5db
Dc voltage: 3-5V
Dc current: 20MA max
Mechanical specification
Weight: < 400g

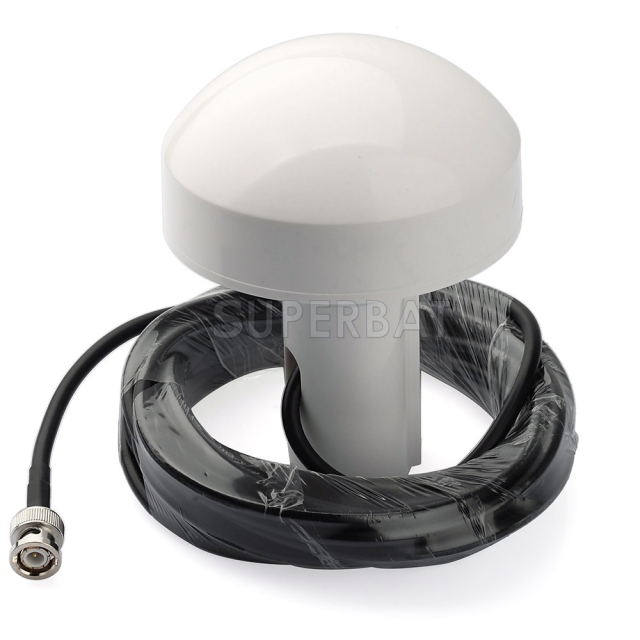

Cable: Coax cable RG58
Cable Length: Optional 5M / 3M / 10M ,contact us

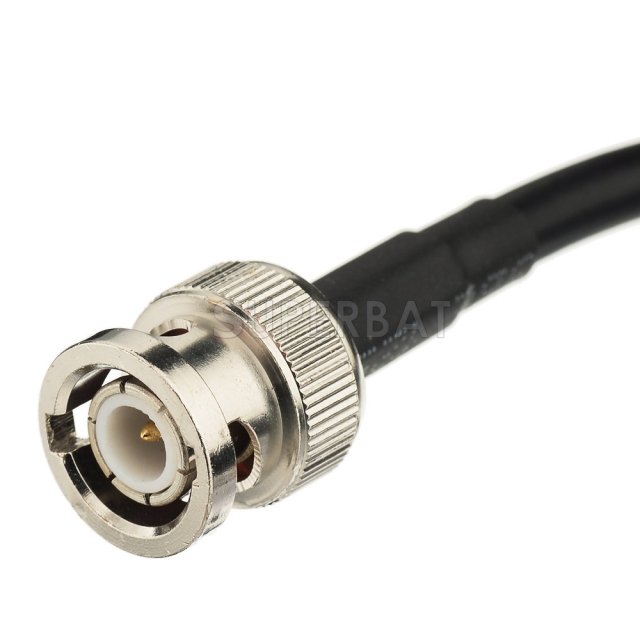

Connector: BNC male straight , SMA/SMB/SMC/TNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

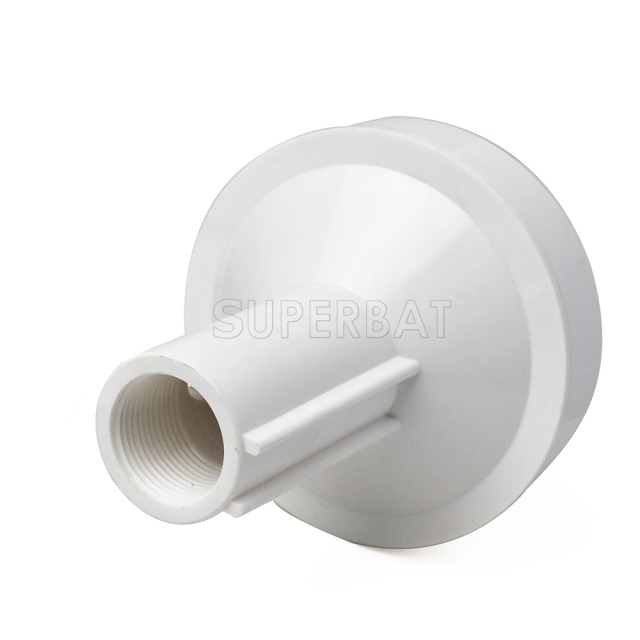

Mounting base: Screw
Environmental specification
Working temp: -40~+85
Storage temp: -40~+100
Vibration sine sweep: 1g(0-p)10~50~10hz each axis
Humidity: 95%~100%rh
Weatherproof: 100%
Aplication
Furuno: GN-80 GPS Receiver AU-12-5B
Garmin GPSMAP 130 (010-00091-00)
Garmin GPSMAP 135 Sounder (010-00092-01)
Garmin GPSMAP 152 (010-00227-00)
Garmin GPSMAP 162 (010-00191-00)
Garmin GPSMAP 168 Sounder (010-00199-00)
Garmin GPSMAP 172 (010-00362-00)
Garmin GPSMAP 172C (010-00227-00)
Garmin GPSMAP 176 (010-00208-00)
Garmin GPSMAP 176C (010-00214-00)
Garmin GPSMAP 178, 178C (010-00363-00)
Garmin GPSMAP 178C Sounder (010-00340-00)
Garmin GPSMAP 180 (010-00149-00)
Garmin GPSMAP 182 (010-00238-00)
Garmin GPSMAP 182C (010-00259-00)
Garmin GPSMAP 185 Sounder (010-00150-00)
Garmin GPSMAP 188 (010-00239-00)
Garmin GPSMAP 188C (010-00260-00)
Garmin GPSMAP 192C (010-00431-00)
Garmin GPSMAP 196 (010-00301-00)
Garmin GPSMAP 198C Sounder (010-00432-00)
Garmin GPSMAP 200 (010-00049-00)
Garmin GPSMAP 2006C (010-00252-00)
Garmin GPSMAP 205 (010-00069-01)
Garmin GPSMAP 210 (010-00069-00)
Garmin GPSMAP 215 (10-00069-20)
Garmin GPSMAP 220 (010-00070-00)
Garmin GPSMAP 225 (010-00070-20)
Garmin GPSMAP 230 (010-00118-00)
Garmin GPSMAP 232 (010-00118-00)
Garmin GPSMAP 235 Sounder (010-00119-00)
Garmin GPSMAP 238 Sounder (010-00250-10)
Garmin GPSMAP 276C (010-00331-00)
Garmin GPSMAP 292 (010-00506-01)
Garmin GPSMAP 295 (010-00200-00)
Garmin GPSMAP 296 (010-00356-00)
Garmin GPSMAP 298C Sounder (010-00507-00)
Garmin GPSMAP 376C (010-00438-00)
Garmin GPSMAP 378 (010-00542-00)
Garmin GPSMAP 392 (010-00508-00)
Garmin GPSMAP 396 (010-00425-00)
Garmin GPSMAP 398C Sounder (010-00509-00)
Garmin GPSMAP 478 (010-00543-00)
Garmin GPSMAP 492 (010-00503-00)
Garmin GPSMAP 496 (010-00578-00)
Garmin GPSMAP 498C Sounder (010-00504-00)
iCOM GP-270ML High Resolution Graphic Receiver
iCOM GP-360ML High Resolution Graphic Receiver
