Key Specifications/ Special Features:

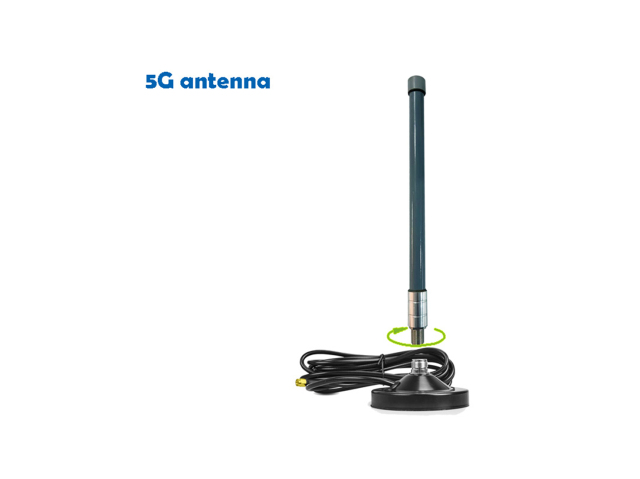

OEM/ODM Wi-Fi/LoRa/LTE/5G/V2X/GPS omni fiberglass antenna with N-female N-K connector
Example- 2.4G 6dbi model
Gain 6.0±1 dBi
Frequency 2400-2500Mhz
Impedance 50Ω
VSWR ≤2
Beamwidth 360°
Connector N-K/N-J optional
Structure Fiberglass
Length 350±5mm
Diameter 25mm (Tube)
The application range of Wi-Fi fiberglass antennas is very wide. In outdoor environments, it can resist the erosion of harsh weather such as strong winds, rain, snow, hail, etc., ensuring stable wireless signal transmission. Whether it's high-rise buildings in cities, remote mountainous areas, or ocean platforms, Wi-Fi fiberglass antennas can provide reliable network coverage to meet communication needs in various complex environments.
• Improving signal quality
Enhancing signal strength and stability, reducing signal attenuation and interference, making data transmission more reliable.
• Enhanced signal coverage
It can effectively expand the coverage range of wireless networks, allowing signals to reach farther distances and more corners.
• Aesthetic appearance
Compared to some other antennas, the design is relatively more regular and has certain advantages in appearance.
| Model | 2dB-2.4 | 4dB-2.4 | 6dB-2.4 | 4dB-5.8 | 6dB-5.8 | 6dB-2.4/5.8 |
| Frequency Range | 2400-2500MHz | 2400-2500MHz | 2400-2500MHz | 5150-5850MHz | 5150-5850MHz | 2400-2500/5150-5850MHz |
| Gain | 2dBi | 4±1dBi | 6.0±1 dBi | 4±1dBi | 5.0±1 dBi | 4.0dBi /6.0dBi |
| VSWR | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤3.0 |
| ovality(dB) | ≤±2 | ≤±2 | ≤±2 | ≤±2 | ≤±2 | ≤±2 |
| Impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Max input power | 50W | 50W | 50W | 50W | 50W | 50W |
| Dimensions（mm） | ɸ20*215 | ɸ20*220 | ɸ20*350 | ɸ20*185 | ɸ20*185 | ɸ20*270 |
| Connector type | N-K/J | N-K/J | N-K/J | N-K/J | N-K/J | N-K/J |
| Radome material | Fiberglass | Fiberglass | Fiberglass | Fiberglass | Fiberglass | Fiberglass |
