The wide Band Log Periodic Directional Antenna will collect the cell tower signal and send it through the cable to an amplifier, cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifier or directly to the antenna and broadcast back to the cell tower.

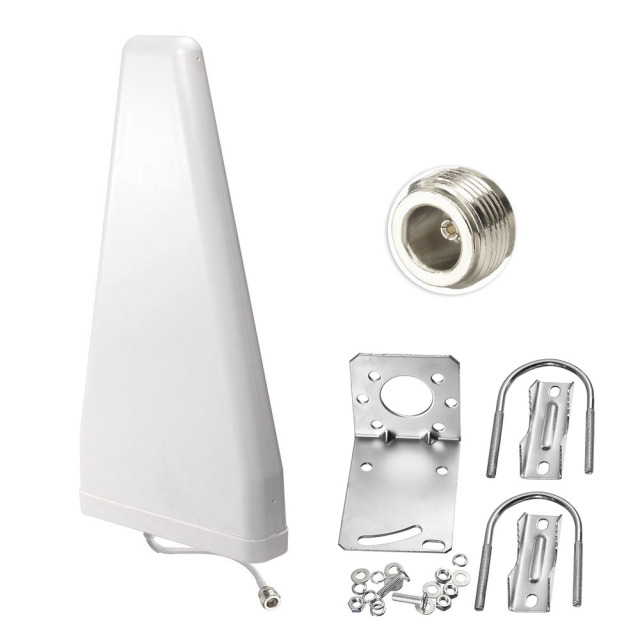

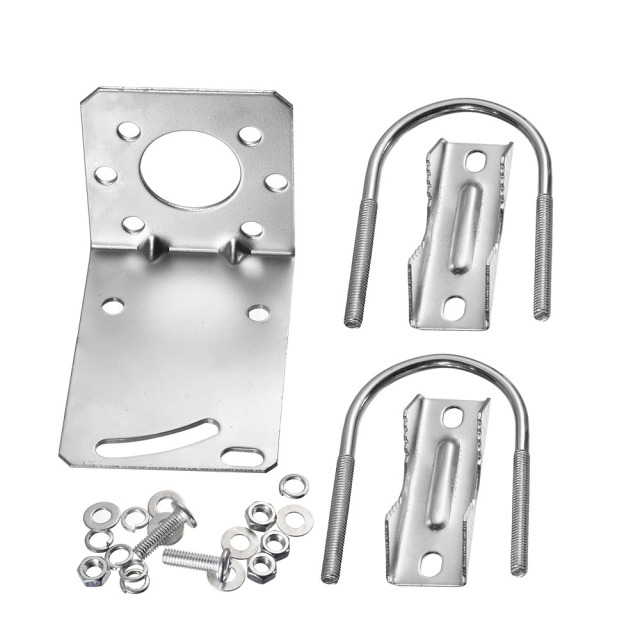

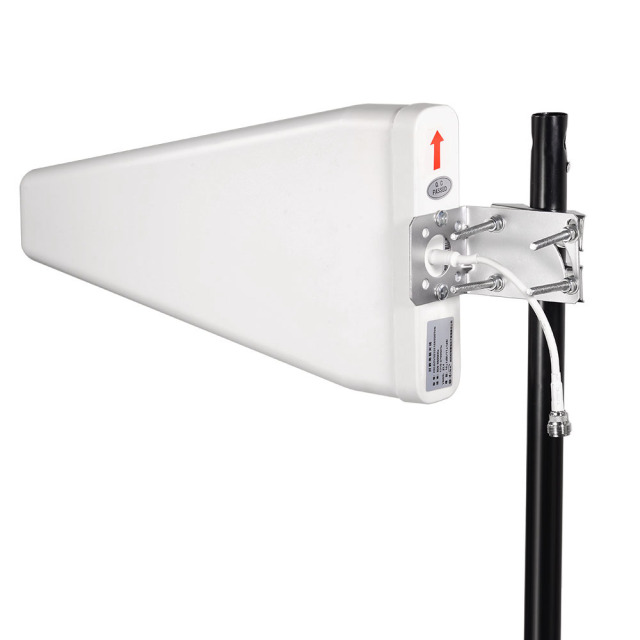

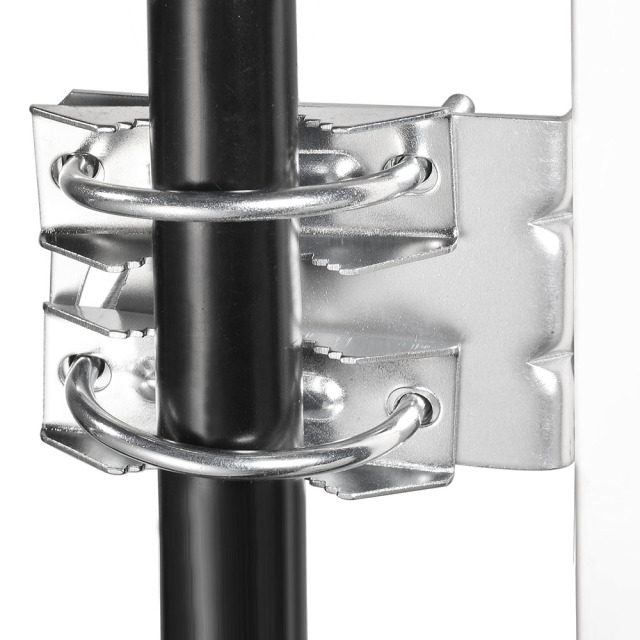

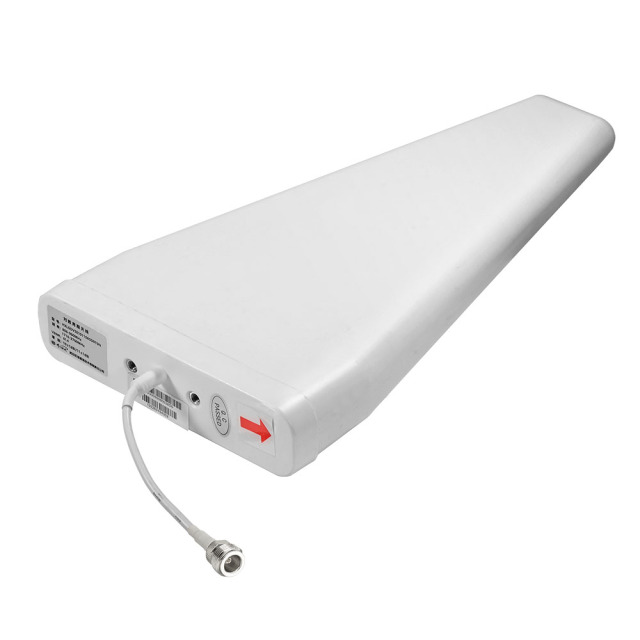

This directional ultra wideband log periodic antenna covers a very wide frequency range with high gain. Because it covers both cellular, PCS and WiFi worldwide frequencies, it is very useful for CPE equipment and base station equipment needed for these frequency bands minimizing the amount of equipment needed for each service location. This antenna can be used indoors or outdoors and comes complete with all components needed for pole mounting or wall mounting The sealed housing is UV stabilized ABS plastic. The backplate is stainless steel with stainless steel fasteners. All bracket components are stainless steel as well for corrosion protection. The pigtail is 16" outdoor rated cable terminated with an FME Male connector.
Specification:
Frequency Range: 700-2700MHz
Gain: 9/10dBi
VSWR: ≤1.4
Max power: 50 W
Polarization: Vertical
Input Impedance: 50 Ohm
Lobe level: <20dB
Horizontal wave width HP: 90°/ 75°
Vertical plane wave width HP: 60°/ 55°
front-to-back ratio: >15dB
Lightning protection: DC Ground
material for radome: ABS
Size: 294mm×210mm×65mm
Weight: 1.1kg
Working Temperature: -40℃~+60℃
Antenna connector: N-Type Female straight
